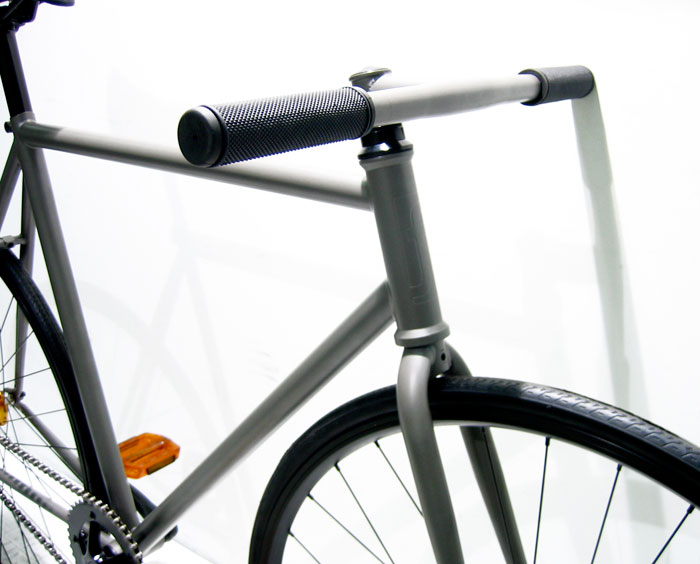

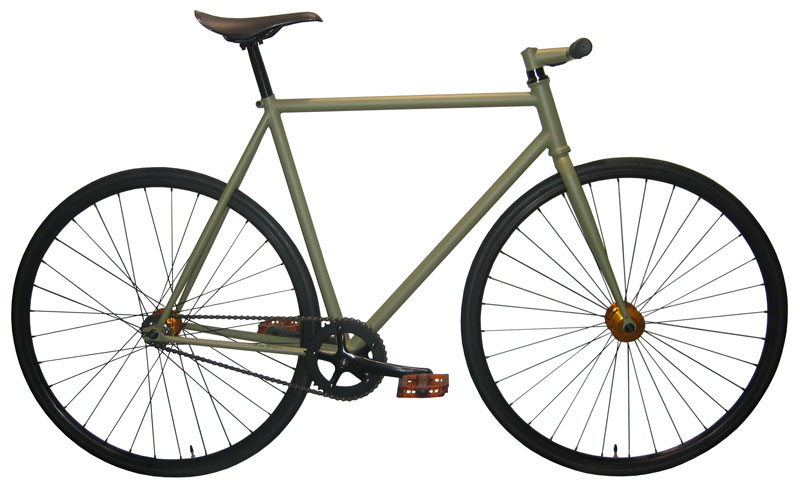

The Relax complete bike - available in 52cm, 55cm or 58cm grey

The Relax can be described as an "easy rider", with a flat bar/stem combo and easy 42/16 gear ratio. The Relax has a flip-flop rear hub with the option of a 16T fixed cog or 16T freewheel, which can easily and quickly be swapped around and comes with front and rear brakes, just in case you need them. You also get Wellgo plastic BMX pedals, padded saddle and Kenda tires. Colour is matt grey for the frame, fork and bar/stem combo, clear orange pedals, gold hubs and all the other parts are black.

  click to enlarge

Pictured without brakes. However, every Relax is delivered with brakes, freewheel and fixed sprocket. You can choose your riding style.

> Modern/classical frame and fork design
> 3 sizes : 52cm, 55cm or 58cm
> Full 4130 Cr-Mo frame and fork
> Narrow flat handlebar/stem Cr-Mo combo
> 42/16 gear ratio
> Sealed bearing BB and hubs
> Plastic BMX type pedals
> Flip flop rear hub (fixed/freewheel)
> 1/2"x1/8" chain
> 300 mm long seat post and 15 mm stem spacers for perfect setting
> Aero padded saddle
> Tire clearance : up to 700x28c tire
> Weight 10.5 kg / 23 lbs

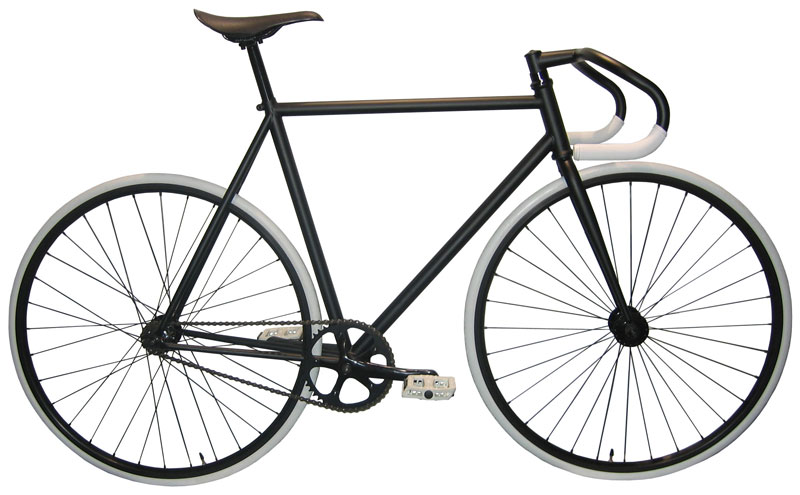

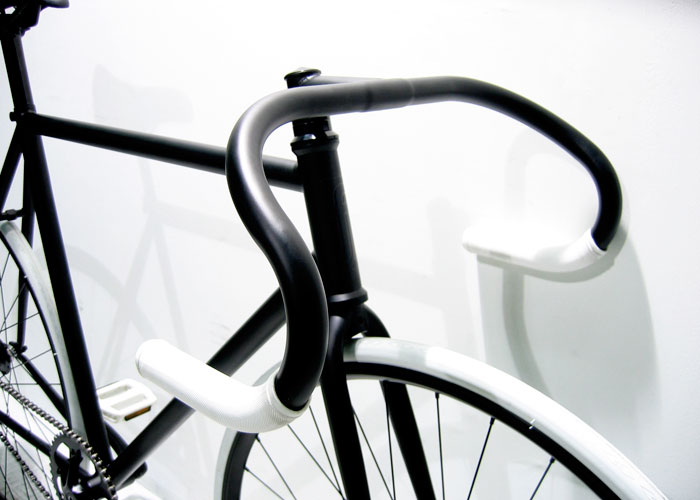

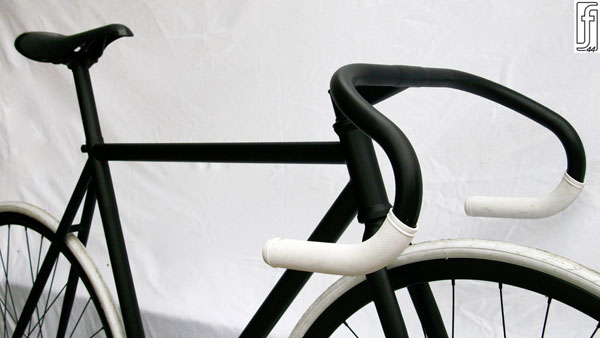

The Noble complete bike - available in 52cm, 55cm or 58cm black

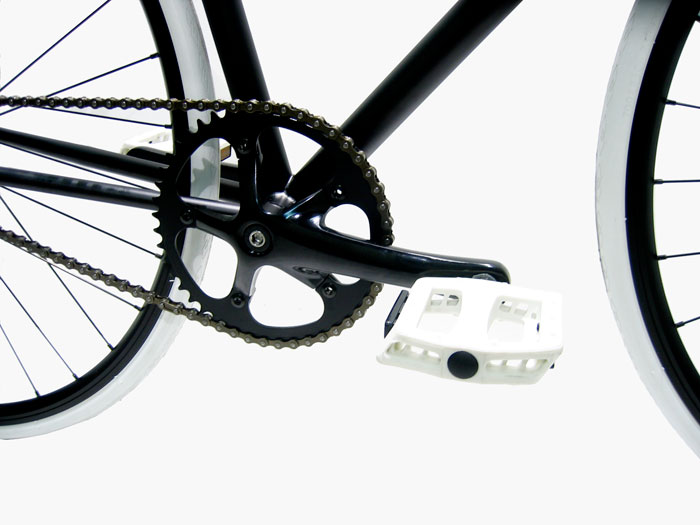

The Noble is a little more serious, drop bars with grips on the lower section and a faster 46/16 gear ratio. As with the Relax you get the option of a flip-flop rear hub with a 16T fixed cog or 16T freewheel, optional brakes as well as Wellgo plastic BMX pedals, padded saddle and Innova tires. Colours are matte black for the frame, fork and bar/stem combo, white for the pedals, grips and tyres and black for everything else.

Click to enlarge

Pictured without brakes. However, every Noble is delivered with brakes, freewheel and fixed sprocket. You can choose your riding style.

> Modern/classical frame and fork design
> 3 sizes : 52cm, 55cm, 58cm
> Full 4130 Cr-Mo frame and fork
> Track handlebar/stem Cr-Mo combo
> 46/16 gear ratio
> Sealed bearing BB and hubs
> Plastic BMX type pedals
> Flip flop rear hub (fixed/freewheel)
> 1/2"x1/8" chain
> 300 mm long seat post and 15 mm stem spacers for perfect sizing
> Aero padded seat
> Tire clearance : up to 700x28c tire
> Weight 10.8 kg / 23.8 lbs

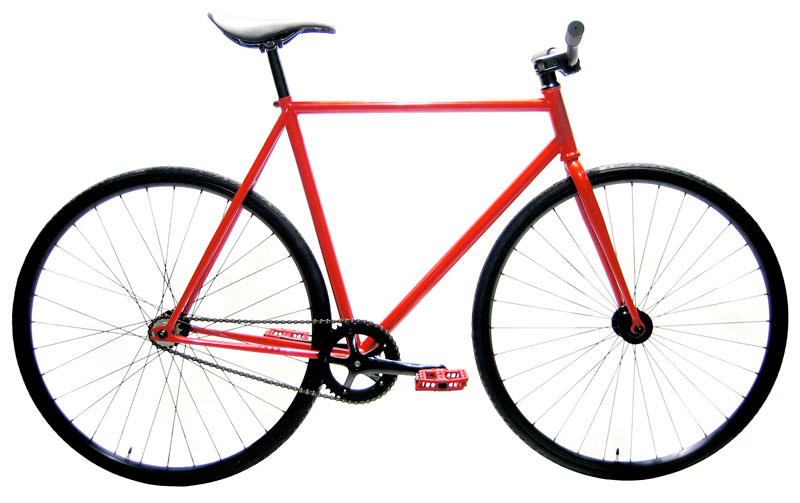

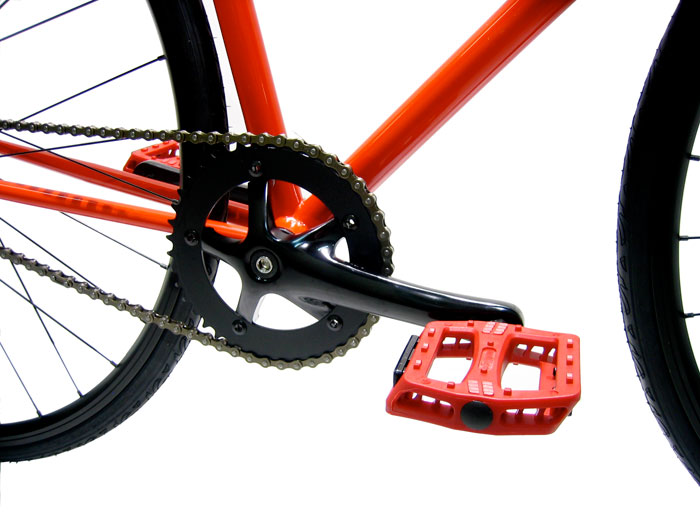

The Revolted complete bike (new for 2010) - available in 52cm, 55cm or 58cm red

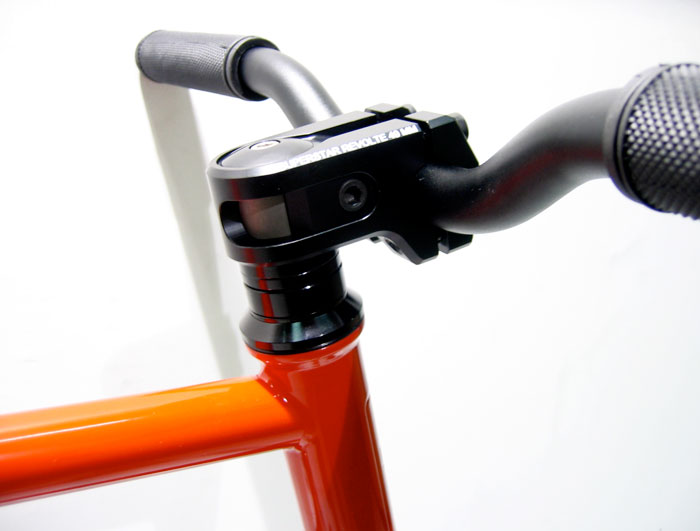

New for 2010 is the Revolted complete bike with the Revolte BMX stem and a raised alloy handlebar. You will also find a faster 46/16 gear ratio, as well as the option of a flip-flop rear hub with a 16T fixed cog or 16T freewheel , optional brakes and Wellgo plastic BMX pedals, padded saddle and Innova tires. The Revolted comes with a red frame and fork, black bar and stem combo, red pedals and black for everything else.

click to enlarge

Pictured without brakes. However, every Revolted bike is delivered with brakes, freewheel and fixed sprocket. You can choose your riding style.

> modern/classical frame and fork design
> 3 sizes : 52 cm, 55 cm, 58 cm
> full 4130 Cr-Mo frame and fork
> Superstar Revolte BMX stem
> narrow raised alloy handlebar
> 42/16 gear ratio
> sealed bearing BB set
> plastic BMX type pedals
> sealed bearings hubs
> flip flop rear hub (fixed/freewheel)
> 700x25c tires
> 1/2"x1/8" chain
> 300 mm long seat post and 22 mm stem spacers for perfect setting
> Aero padded saddle
> Tire clearance : up to 700x28c tire
> weight around 10.0 kg / 22 lbs

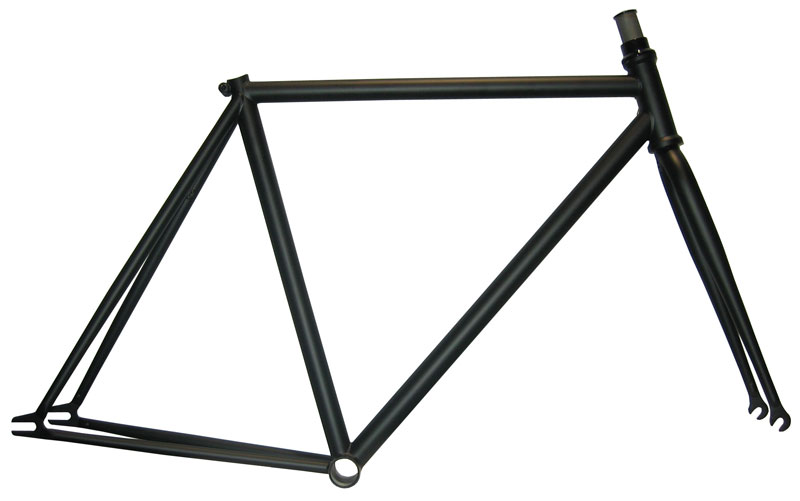

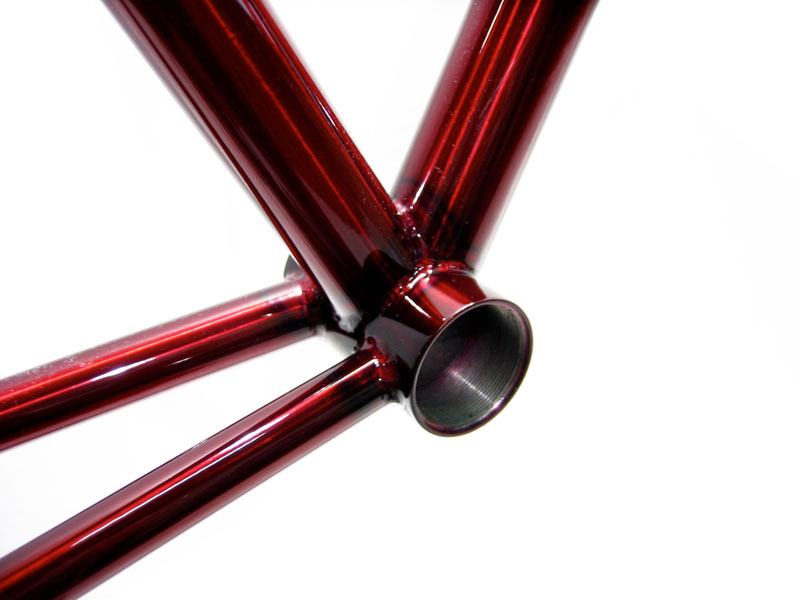

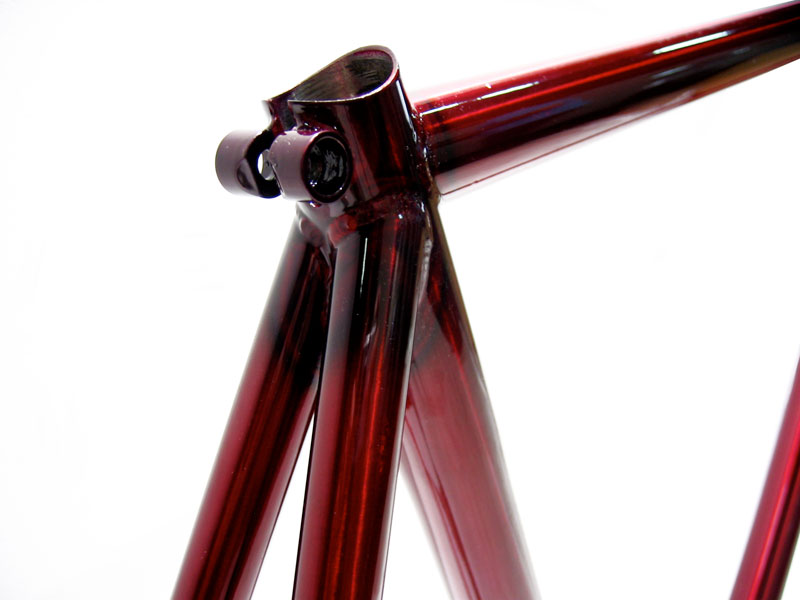

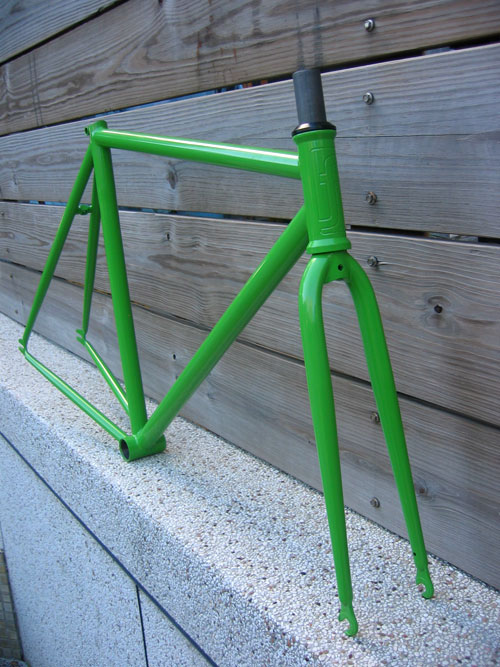

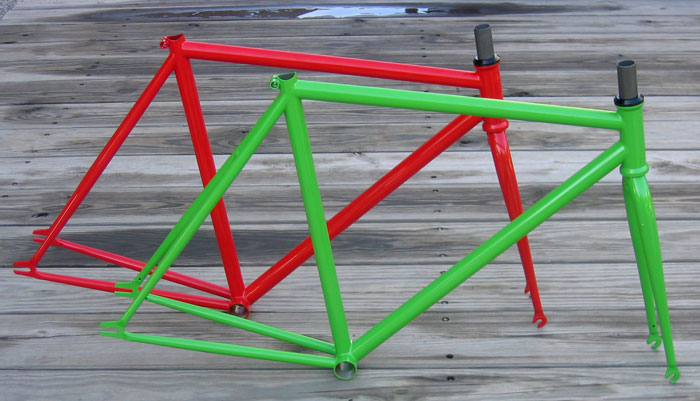

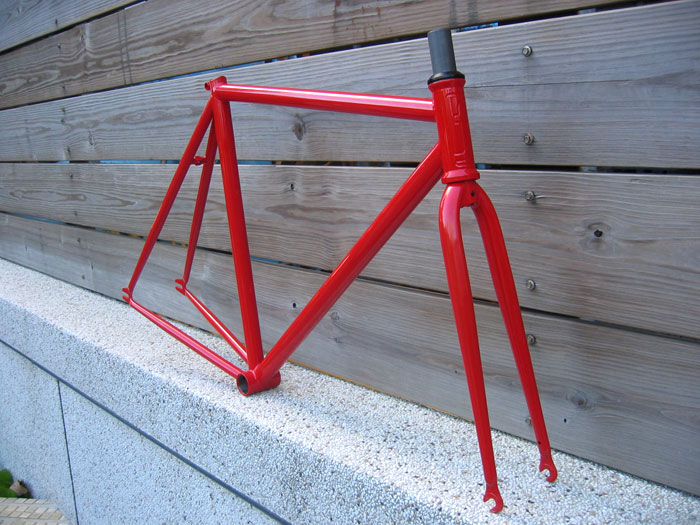

Focale 44 frame kit, includes : frame, fork, headset & spacers - Black or Clear Red

Frame:
> 3 sizes : 52cm, 55cm, 58cm
> Full 4130 Cr-Mo
> Horizontal top tube
> Integrated head tube for Campagnolo standard (1-1/8")
> Engraved F44 logo in head tube
> BSA bottom bracket
> Straight chain stays: allows up to 700x28c tire
> Hole for rear brake in seat stays bridge
> 4mm Cr-Mo CNC dropouts
> Weld-on seat clamp with replaceable bolt and nut
> 2.09kg / 4.6 lbs

Fork:
> Full 4130 Cr-Mo
> 1-1/8" steer tube threadless
> Integrated crown cone for integrated headset only
> Hole for front brake
> 25.4mm taper legs
> 33.5mm rake
> 920g / 2.0 lbs

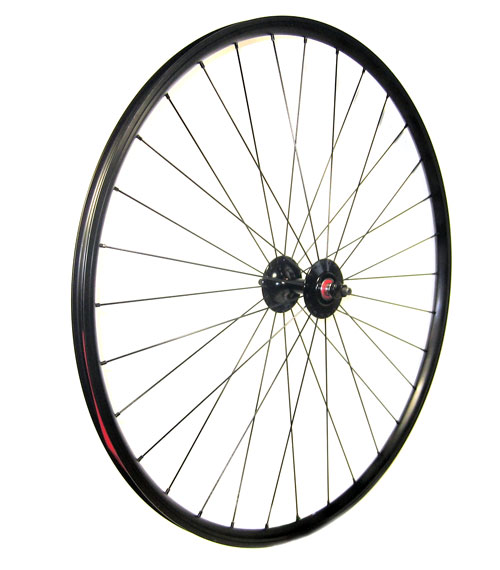

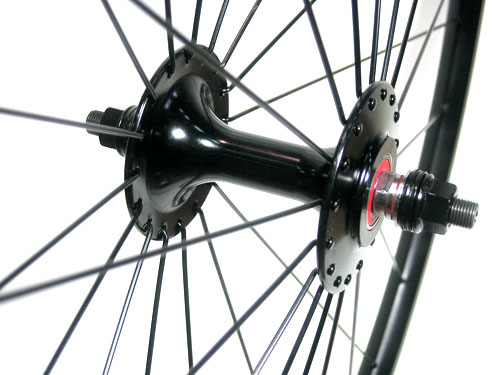

Focale 44 front wheel 700c - Black

> High flange sealed bearing hub
> 3/8" solid Cr-Mo axle
> 100mm axle spacing
> 32 black spokes, radial lacing
> Black nipples
> Alloy single wall rim, 21 mm high
> Hi-pressure rim tape

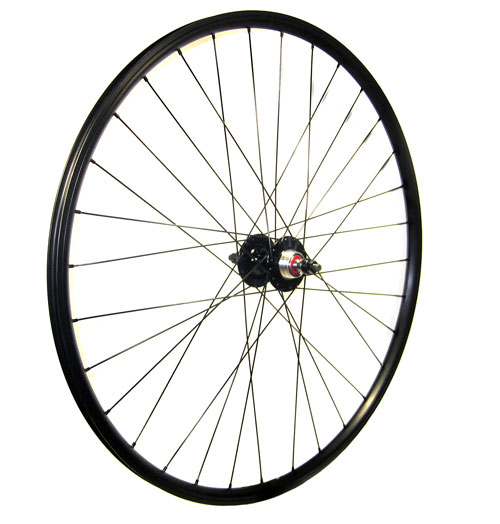

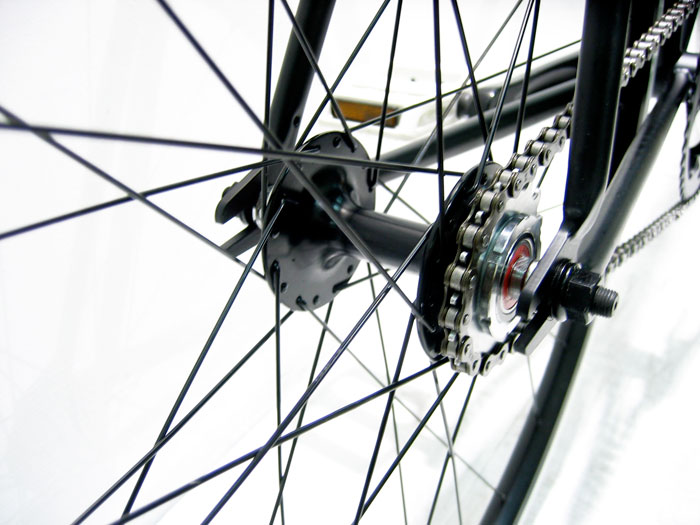

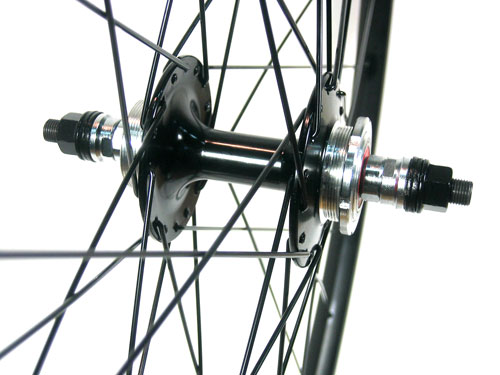

Focale 44 rear wheel

> High flange sealed bearing hub
> Flip-flop: for fixed cog or freewheel
> Lock-ring included
> 3/8" solid Cr-Mo axle
> 120mm axle spacing
> 32 black spokes, 3-cross lacing
> Black nipples
> Alloy single wall rim, 21 mm high
> Hi-pressure rim tape

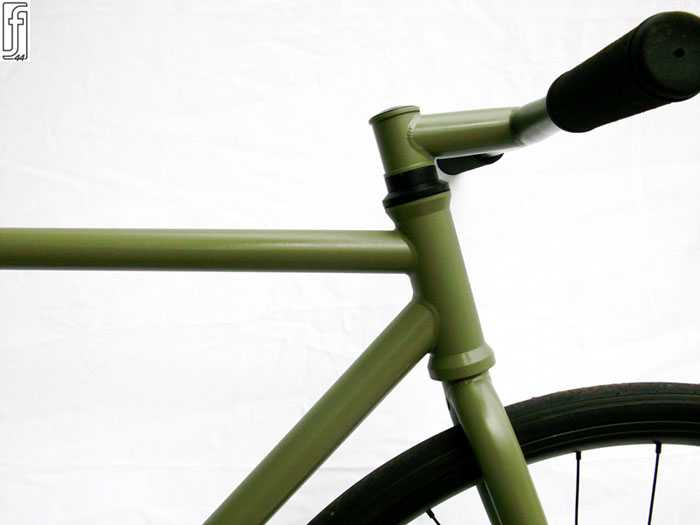

Focale 44 flat handlebar / stem combo  - Black

> 1-pc stem/handlebar combo, flat style
> Full 4130 heat treated Cr-Mo
> Fits 1-1/8" threadless steer tube
> 80mm stem length
> 40mm stem height
> -10° angle
> Internal stem clamp
> 580mm handlebar width
> 22.2 mm (7/8") handlebar OD
> 3° backsweep
> 0° upsweep

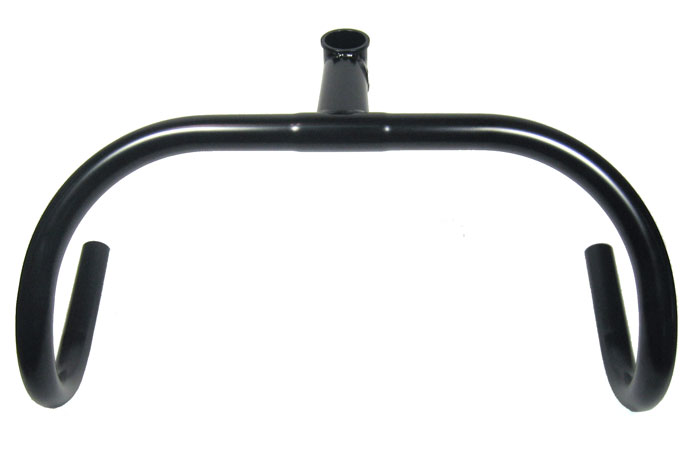

Focale 44 track handlebar / Stem combo  - Black

> 1-pc stem/handlebar combo, track style
> Full 4130 heat treated Cr-Mo
> Fits 1-1/8" threadless steer tube
> 90mm stem length
> 40mm stem height
> 0° angle
> Internal stem clamp
> 420mm handlebar width
> 110 mm reach
> 170 mm drop
> 24.0mm handlebar OD

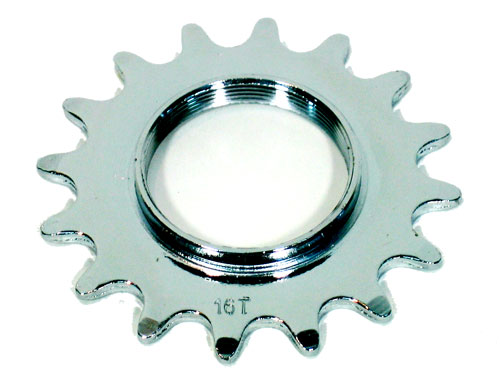

Focale 44 16T sprocket

> Cr-Mo
> For 1/2" x1/8" chain
> 1.37 x 24 tpi thread

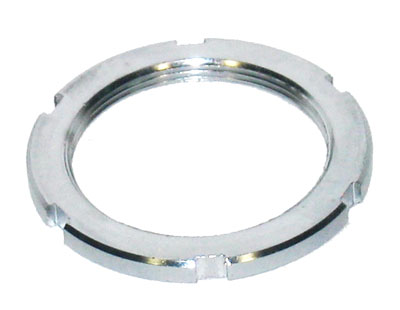

Focale 44 16T Lock ring

> Cr-Mo
> Fits most track hubs with double thread

Focale 44 chainring bolts

> Set of 5 chainring bolts

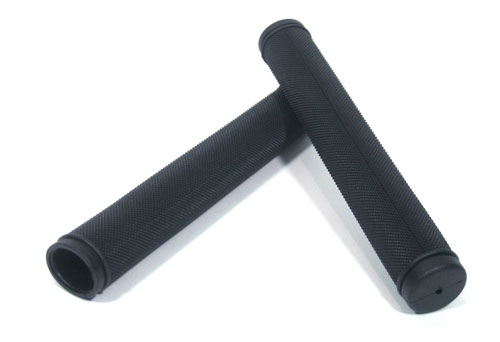

Focale 44 Keirin Grip - Black or white

> Smooth Kraton rubber
> Micro diamond design
> 175mm long
> Fits OD 24mm handlebars

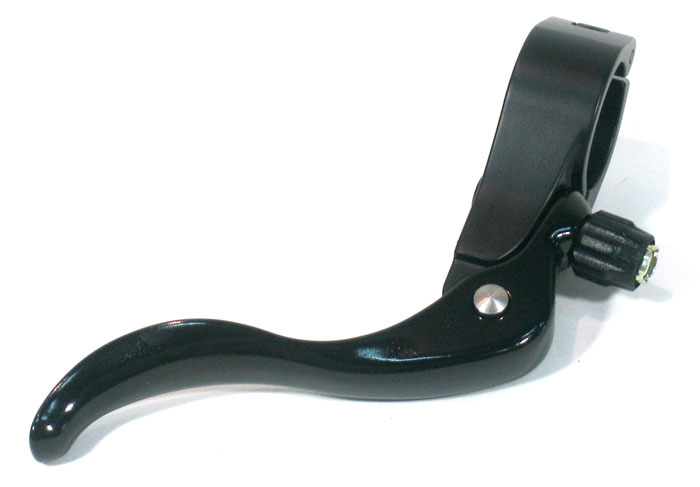

Focale 44 brake lever

> Top mount on track handlebar
> For OD 24mm handlebars
> Hinged clamp
> Return spring
> Right only

Focale 44 Noble tyre - White

> 700 x 23c
> Long lasting 30 dpi sidewalls
> Made by Innova
