Check out the Mankind web site at www.mankindbmx.com

Mankind Bikes is owned by long time German rider Christoph Huber, Andrew Gregory rides for Mankind in Australia

Click here for BB and Head set bearing kits

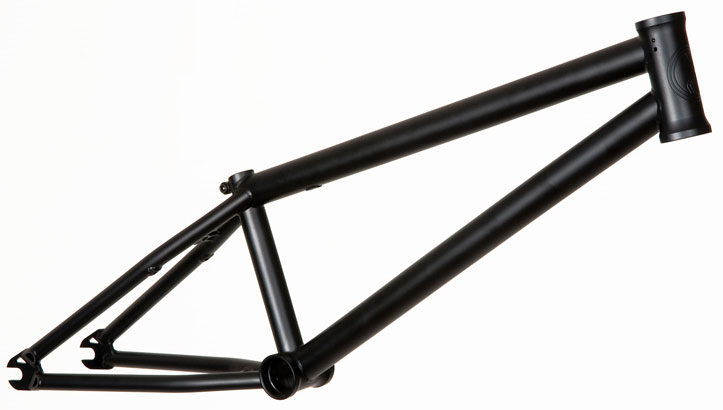

Mellow 20.8" or 21" top tube // Translucent green, matte black, white, pearl blue or purple

The Mellow Frame is Björn “Bommel” Mager`s new signature Mankind frame. It`s a tribute to Mellowpark in Berlin, where Björn started and grew up riding. This machine is full heat treated, has 13,75” slammed chain stay length, stand over 216mm and a 74.5° head tube angle. It features removable u-brake mounts and brake guides, integrated seat clamp, new MK bridges on chain & seat stays and CNCed MK logo on the head tube.

> Full heat treated 4130 chromoly Sanko Japanese tubing
> Chain stay 13,75” slammed, to 14,25“
> Head angle 74.5°
> Integrated headset with removable gyro tabs
> Mid BB height 35mm above axel line
> Dropouts heat treated lasercut, 5mm, 14mm slots with sink cuts on inside
> Chain stays have angled end caps with vent holes
> Removable U-Brake mounts and cable stopper
> Weight 2,05kg / 4,52lbs for 21,0tt

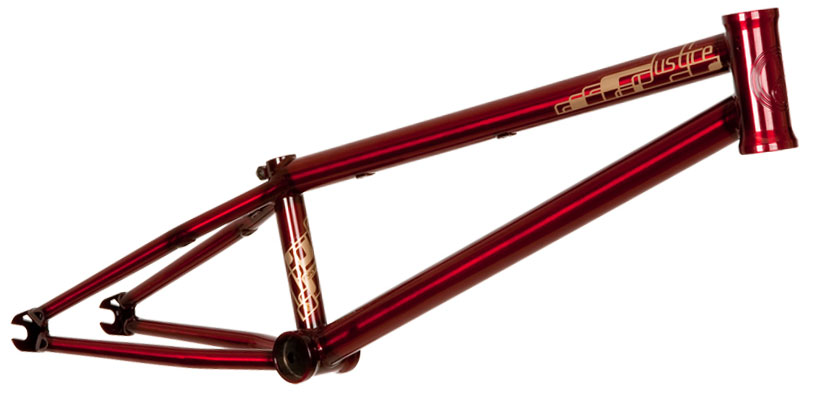

Justice 20.75", 21" or 21.25" top tube // Translucent purple, matte black, matt white, pearl blue or clear red

This is the brand new ultra slim Justice street frame. Features are a 75° head tube, slim TT and DT, BB height: 11.8”, stand over 180mm, 13,25” slammed chain stay length, removable u-brake mounts and brake guides and integrated seat clamp. New MK bridges on chain & seat stays and CNCed MK logo on the head tube and rifle butted seat tube.

> Full 4130 chromoly Sanko Japanese tubing
> Chain stay 13.25” slammed
> Head angle 75°
> BB Height 11.8"
> Integrated seat clamp
> MK logo bridges on chain and seat stays
> Rifle butted seat tube
> Integrated headset with removable gyro tabs
> Removable U-Brake mounts and cable stopper
> Weight: 1,92kg / 4.23lbs

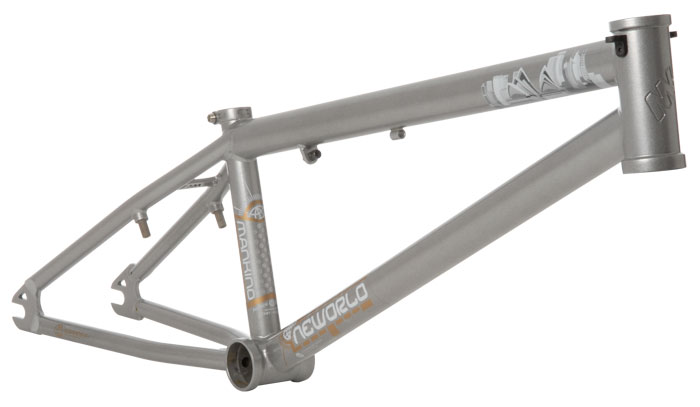

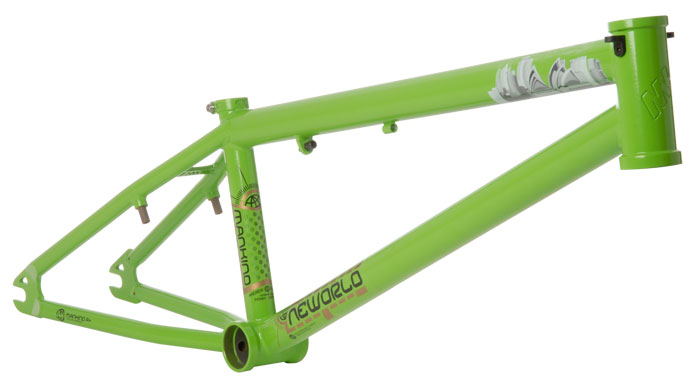

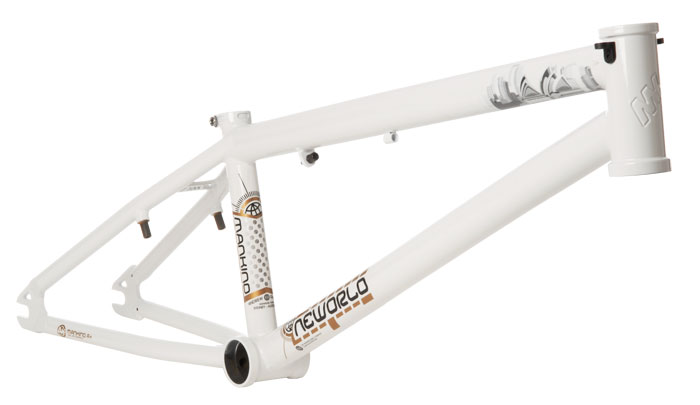

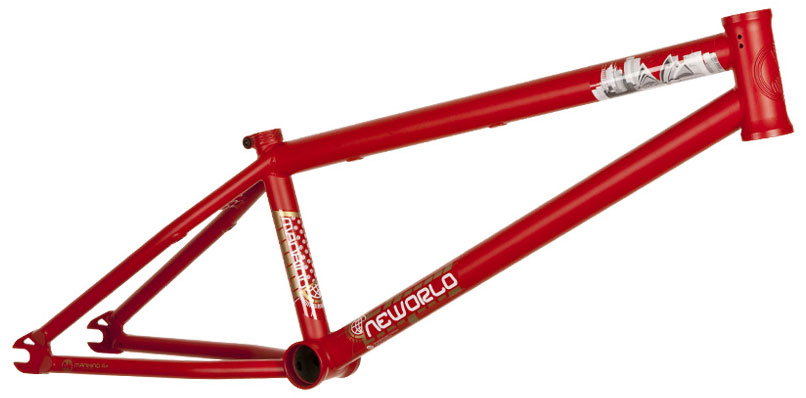

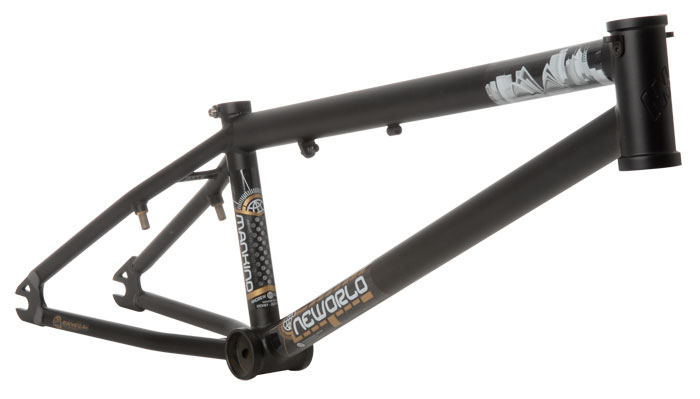

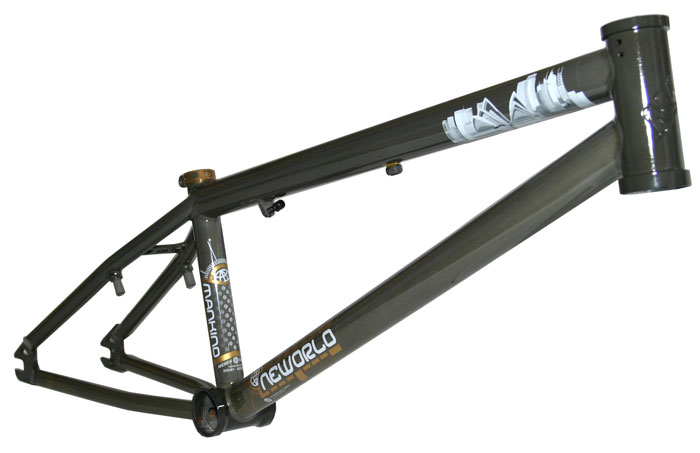

Neworld 2.0 20.7", 20.9" or 21" top tube // Matt red or Matt black

The new Mankind “Neworld” Frame is designed by australian Mankind team rider Andrew “Gee” Gregory. It features a slim frame design with an integrated seatclamp, new shorter dropouts, a seatstay bridge with an MK cutout logo and a chain stay bridge with the Neworld logo. This frame is uses double butted tubing and offers internal headset, mid size bb, removable Gyro tabs and a CNCed MK logo on the head tube.

> Full 4130 chromoly Sanko Japanese tubing
> Seat angle: 71°, head angle 75.0°
> Int. headset, removable gyro tabs
> Mid Size BB
> Dropouts heat-treated 5mm with 14mm slots
> Chain stays 13.50” slammed
> BB height 35mm/1.38” above axel line
> Removable u-brake mounts and brake guides
> Weight 2.20kg / 4.85lbs

Code flatland frame 18.5" or 19.5" top tube // Yellow or Matt black

Part time Aussie Mike Steingraeber has a new signature frame with mankind bikes. The “Code” will be availble here very soon. Heres what Mike had to say about the frame, we'll have full specs here soon.

Here is what Mike has to say about it: “I have been friends with Mankind owner Christoph Huber for well over 20 years, and while a good personal relationship helps, that wasn´t the reason I wanted to ride for Mankind. What I find so appealing about Mankind is the quality of their products, their attention to detail and their nice graphic designs. Christoph let me design my signature frame, the “Code” the way I wanted it to be, without any limitations. I knew what I wanted from the start, so it was just a matter of bringing my ideas to paper, getting a prototype made, which unfotunately took a long time, and now testing the prototype and showing it around.

There are several key elements I wanted in my frame: First of all: strength. My frames have to take a lot of abuse, and I want them to take it. That´s why I wanted a without unnecessary bent tubes, and nothing crossed either.

Secondly, I didn´t want to build a tank, so I opted for butted tubes and tapered chain- and seatstays. To be able to use thin tubes, I wanted the frame to be fully heat treated. That means it gets welded first, then the whole thing gets heat treated, resulting in a very strong structure, including the welds!

Third, the frame had to be functional! That´s why the down tube is slightly elevated, with enough attatchment to the bottom bracket shell, so that´s not going to fall off. The dropouts are on the outside of the seat- and chainstays, so bike varials will be easier without getting caught up with your feet. The head angle is 74°, so your bars won´t touch the ground as easyly when doing hitchhikers and backpackers.

And last but not least I wanted a lot of atention to detail. I opted for machined bottom bracket shell and head tube with integrated logo, a logo etching in the dropouts, the nice Mankind bridge between the seatstays and the curved tube/bridge between the chainstays for added strength. The seattube is outside machined to save a bit of weight and has an integrated seatclamp. The stickers are placed where they don´t get scratched instantly when you ride your bike. I chose not to have brake mounts on the frame, because I don´t use brakes and it looks like most other riders don´t use rear brakes, and the frame just looks much cleaner that way.”

Forward 20.8" or 21" top tube // Pearl red, Pearl blue, Matt black, White, Silver, Trans Purple or Raw

This is the new signature frame of Jeff Klugiewicz, which is the first full heat treatment Mankind frame, which makes it ultra light (2,05kg / 4,48lb) but still very strong. It also has the new Archangel integrated seatclamp and a baseball glove bridge on the chain stays of Jeff K`s favourite ball team.

> Full heat treated 4130 chromoly Sanko Japanese tubing
> Seat tube: single butt (1.4t*1.1t) Heat-treated Angle: 71°
> Seat tube length: 230mm
> Head tube: Heat-treated 74.5°
> Integrated headset with removable gyro tabs
> Bottom bracket: Heat-treated Mid Size BB
> Dropouts: Heat-treated Lasercut, 5mm, 4130 cr-mo, 14mm slots, 2mm sink cuts on inside
> New and shortened dropouts
> Chain stay length: 13,75” slammed to 14,25“
>
BB Height: 35mm / 1,38” above axelline
> U-Brake on seatstays, angled for better brakecable routing
> Angled cablestopper with bolt, for better cablerouting to U-brake.
> Full heat treatment Frame
> Mankind Archangel Integrated Seatclamp
> New Bottom Bracket Shell shape with CNC MK Logo
> MK Bridge on seat stays with cutout “MK” logo. 5mm
> Baseball Glove Bridge on chain stays
> New Head set shell with new smooth shape
> New smaller dropouts with sink cuts on the inside
> Weight 2.05kg (4.48lbs)

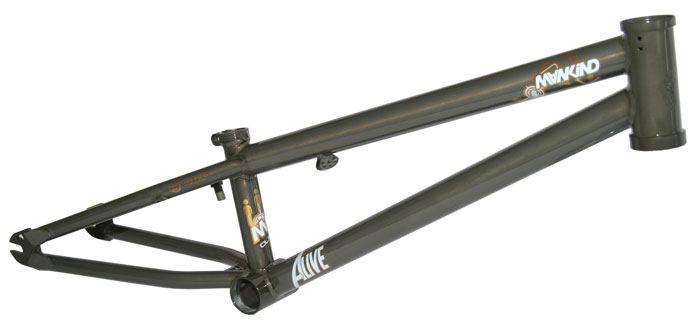

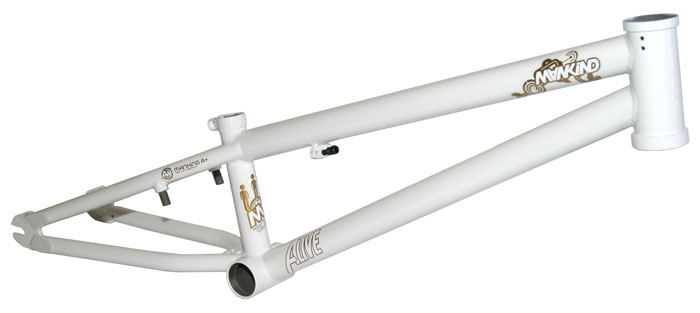

Alive flatland frame 18.5" or 19" top tube // White

> Full 4130 chromoly Sanko Japanese tubing
> TT: ø32.0mm x 1.1t*0.8t*1.1t Heat-treated
> DT: ø32.0mm x 1.2t*0.9t*1.2t Heat-treated
> SS: ø19.0mm x 1.0t*0.7t*1.0t Heat-treated
> CS: ø19.0mm x 1.0t Heat-treated
> Seat tube single butt (1.4t 1.1t) Heat-treated Angle: 71°
> Seat tube length: 170mm with Integrated Seatclamp
> Headtube heat-treated 74.5° - Int. Headse t- rem. Gyro tabs
> Bottom bracket heat-treated Spanish BB
> Dropouts heat-treated laser cut, 5mm, 10mm slots
> Angled weldedon caps on seat & chainstays.
> New and shortened dropouts
> MK Bridge on seat & chain stays with “MK” cutout logo
> 2mm sink cuts on inside of dropouts
> Chainstay length: 12,6“
> BB Height: 11.75”
> Triple cable stop for single or double lower cable
> Weight 1.8kg (3.9lbs)

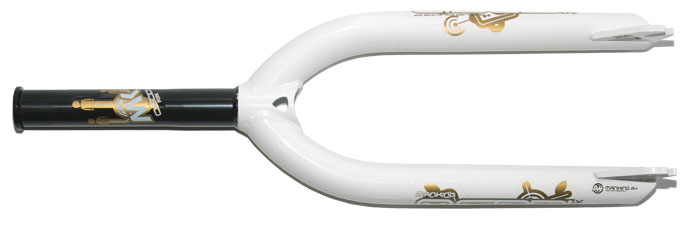

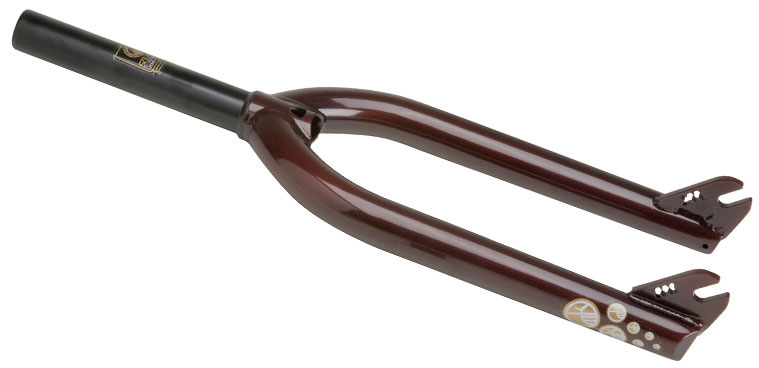

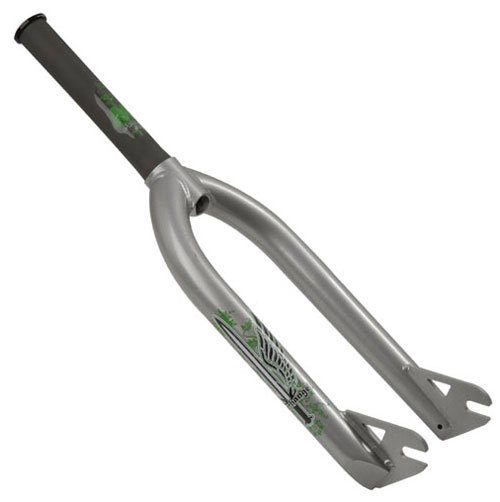

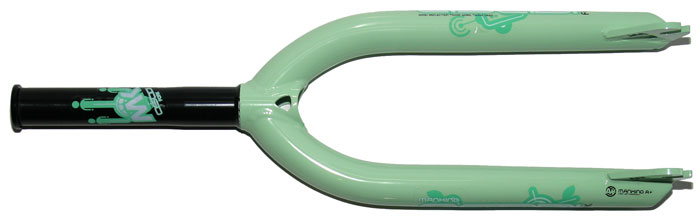

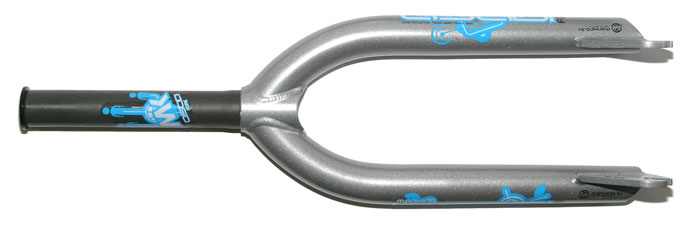

Asadi phase 2 forks - Black / White / Silver / Purple / Pistachio / Raw / Blue / Red

Asadi Phase 2 Forks have a one piece heat treated machined steertube, double butted spiral fluted fork legs and are out of 100% full heat treated Japanese 4130 chromoly.

> 100% heat treated Japanese 4130 crmo
> One piece heat treated machined steer tube

> Double butted spiral fluted fork legs
> Light hollow alloy top bolt
> Laser cut 5mm heat-treated crmo 3/8 dropouts with 35mm offset
> Available with or without U-brake mounts

> Weight 903g



Forward forks - Black / White / Raw / Blue / Red

Forward Forks are designed for the brakeless rider, with a pre cut steer tube for flush assembly and no washers under your stem.

> 100% heat treated Japanese 4130 crmo
> One piece heat treated machined steer tube

> Double butted spiral fluted fork legs
> Light hollow alloy top bolt
> Laser cut 5mm heat-treated crmo 3/8 dropouts with 35mm offset
> Available with or without U-brake mounts

> Weight 950g

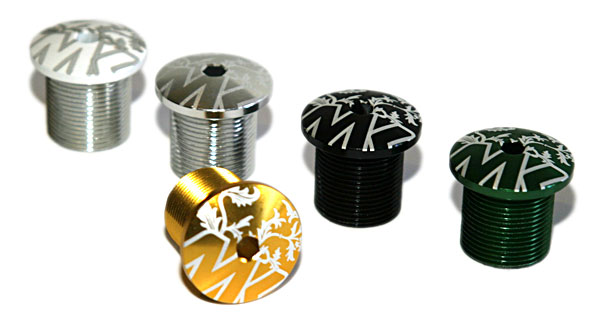

Forks caps - Silver / Black / Green / Gold / White

> Alloy fork top caps for Mankind and other forks
> Weight 16g



Justice Cranks - Flat Black / White / Pearl Blue / Pearl Red / Raw

> 2-pc 175mm crankset
> Heat treated 19mm - 48 spline hollow CrMo spindle
> 2 sprocket bolt holes for regular or microdrive
> 2 sprocket bolts included
> RHD/LHD compatible
> BB sold separately
> Weight 833 gr (1.84lbs)

Neworld bars - Black / Raw / Light green / Purple / White / Red / Blue

> Heat treated, 13 butted 4130 crmo
> 8" or 8.3" rise

> 12 degree backsweep
> 2 degree upsweep
> 28" wide

> Weight 790g / 1.74lbs

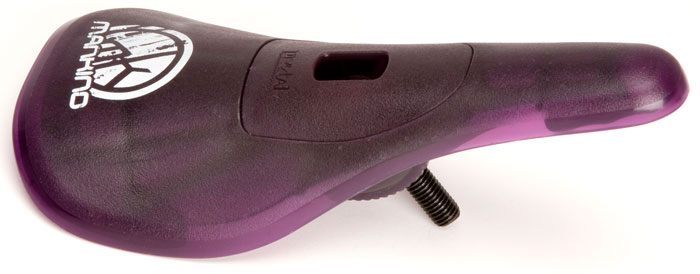

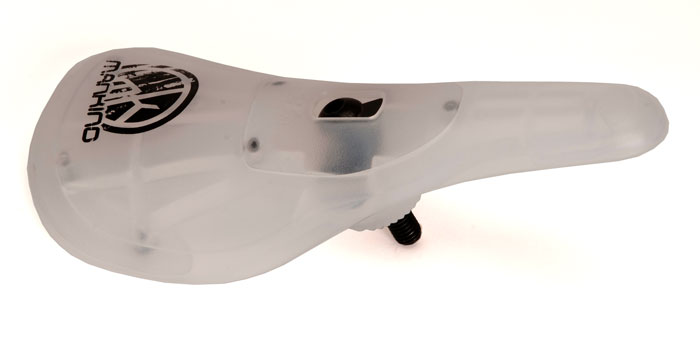

Forward plastic pivotal slim seat - Black / White / Blue / Clear Purple / Clear / Red

> Slim design
> All plastic design

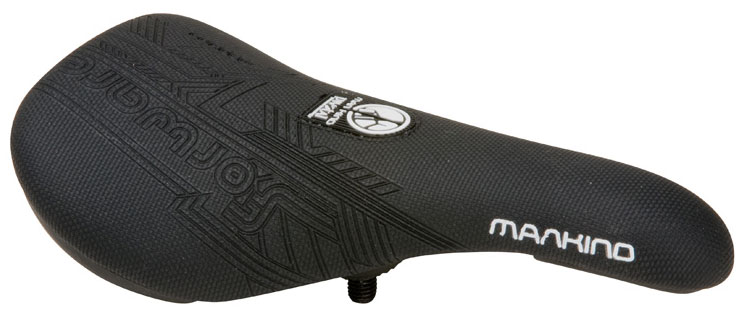

Forward pivotal slim seat - Black / White

> Slim design
> Embossed logo
> Non slip cover with Vinyl and Kevlar
> Weight 262g

Forward pivotal slim seat - Blue

> Slim design
> Non slip cover with Vinyl and Kevlar
> Weight 262g

Icon pivotal slim seat - Black / White

> Slim design
> Non slip cover with Vinyl and Kevlar
> Weight 262g

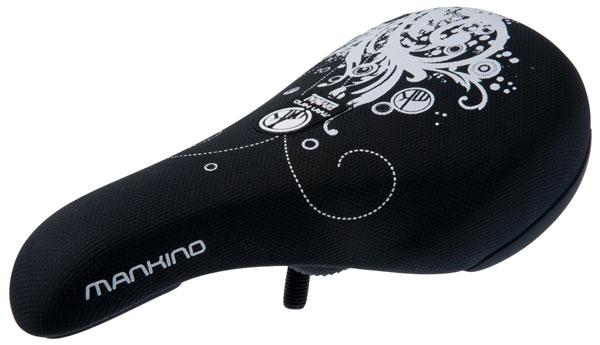

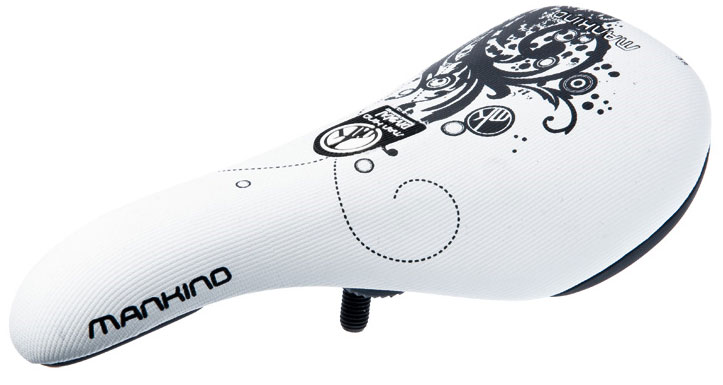

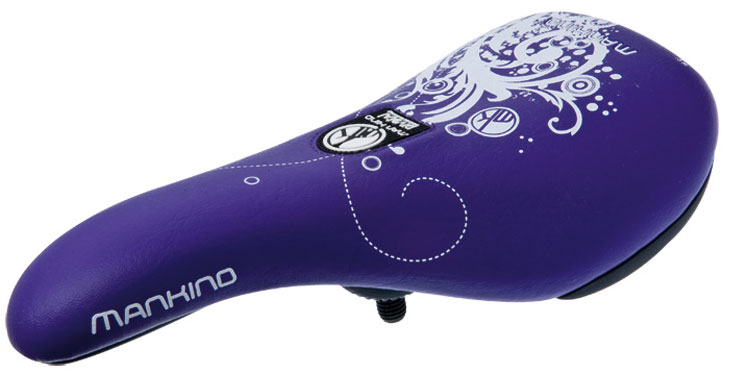

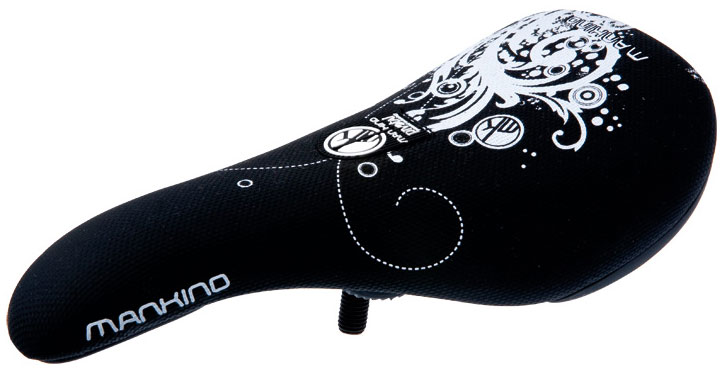

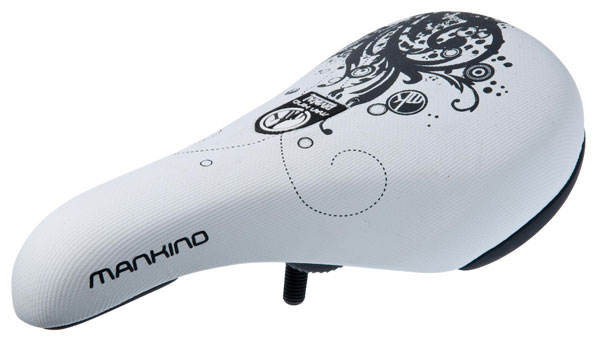

Divine pivotal slim seat - Purple

> Slim design
> Non slip cover with Vinyl and Kevlar
> Weight 262g

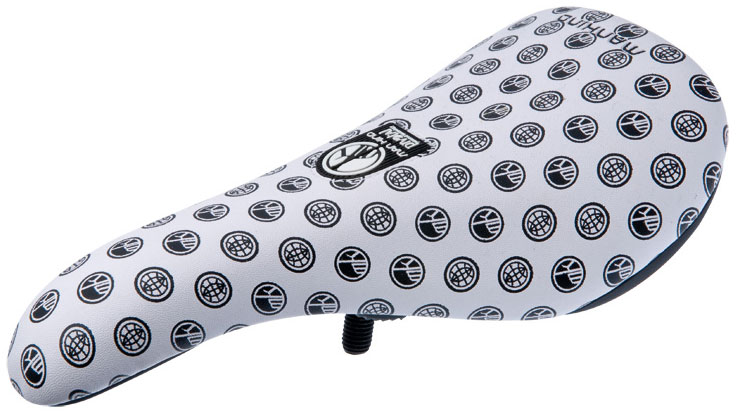

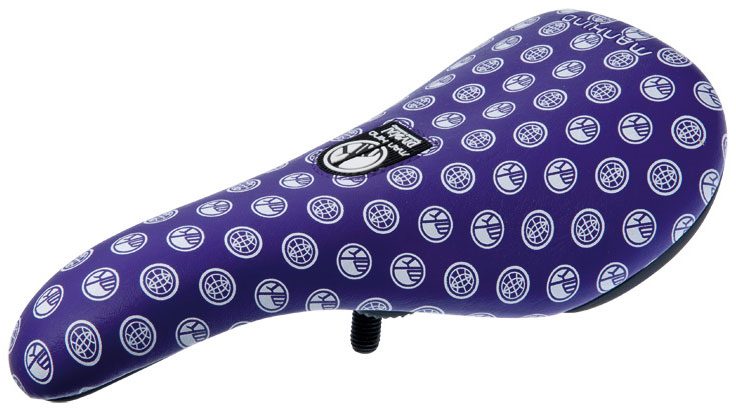

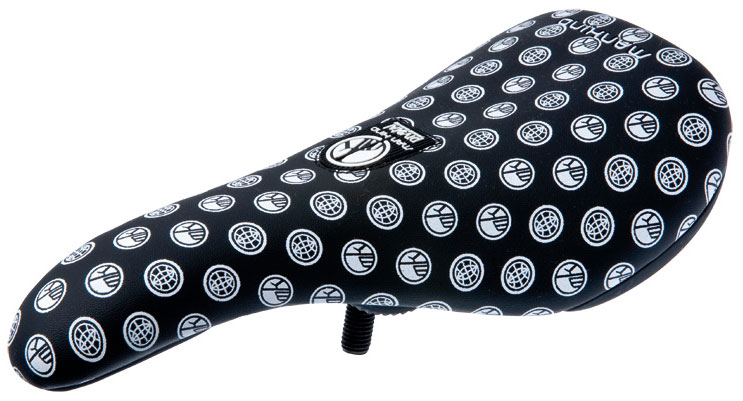

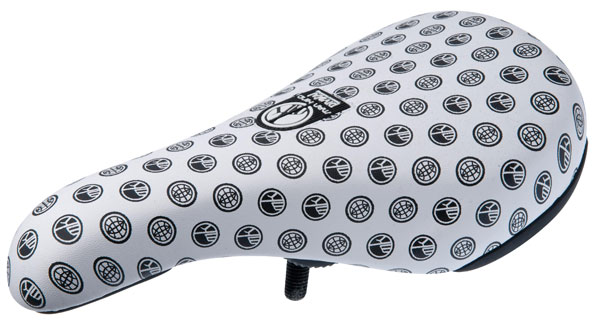

Royal pivotal slim seat - Black / Purple / White

> Slim design
> Non slip cover with Vinyl and Kevlar
> Weight 262g

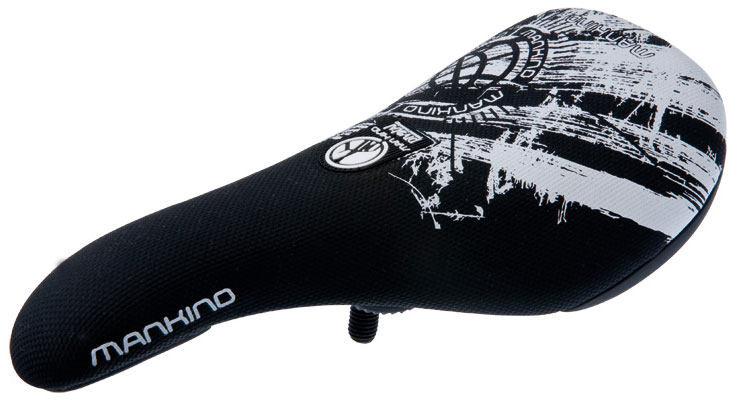

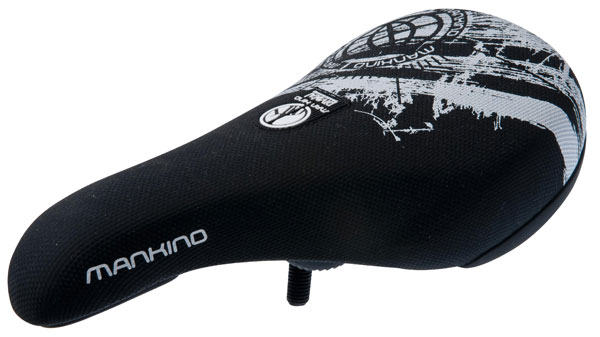

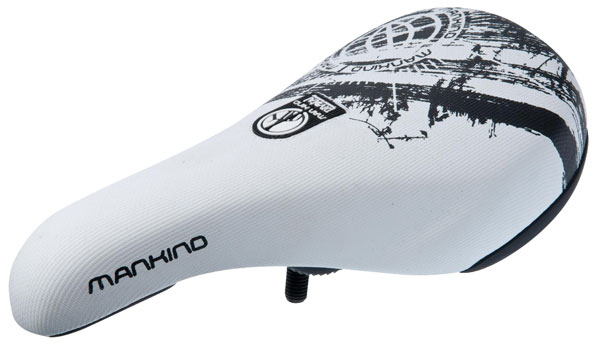

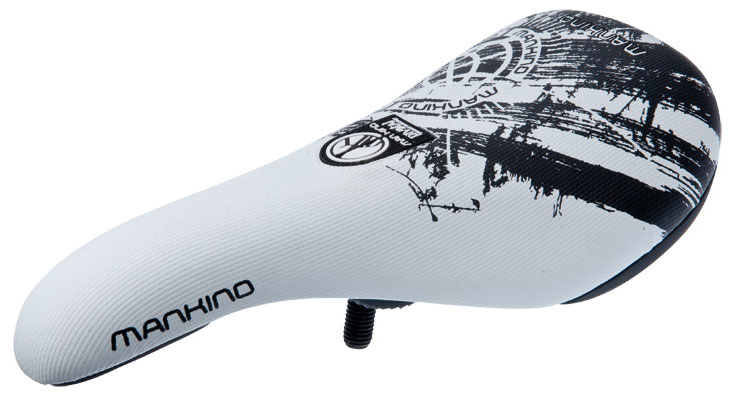

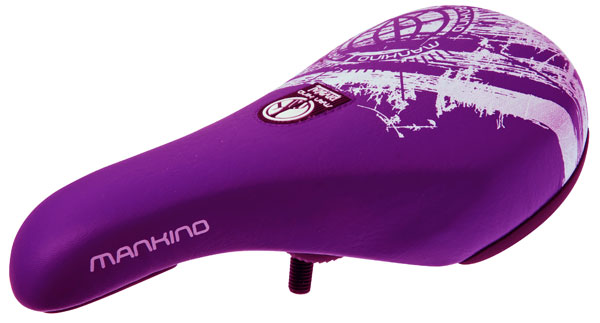

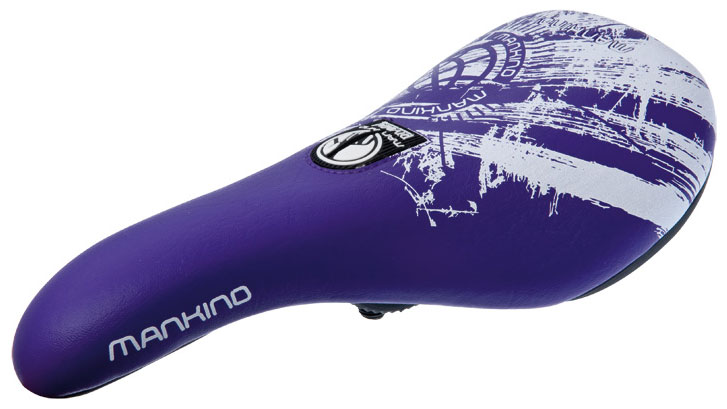

Scrambler pivotal slim seat - Purple / White

> Slim design
> Non slip cover with Vinyl and Kevlar
> Weight 262g

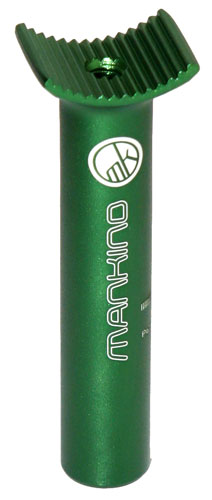

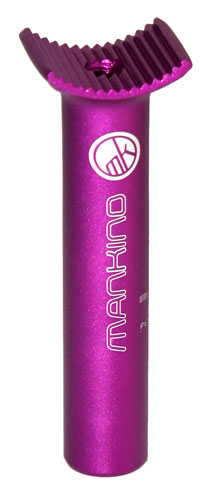

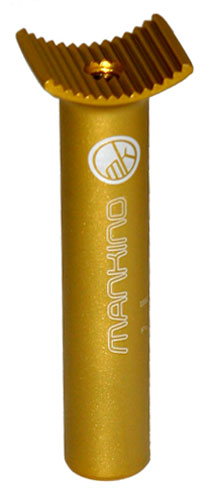

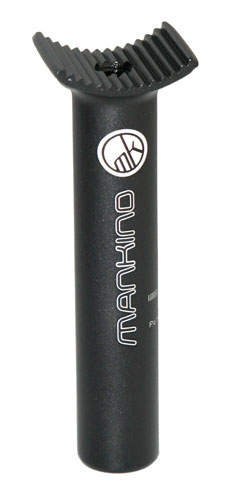

Pivotal seat post - Gold / Black / Green / Purple / Silver / White

> Made from forged 6061 alloy
> 25.4mm diameter
> Length 120mm
> Weight 84g

Valve caps - Black, green, gold, white, silver or purple

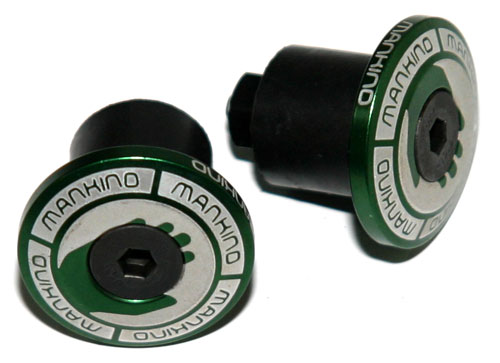

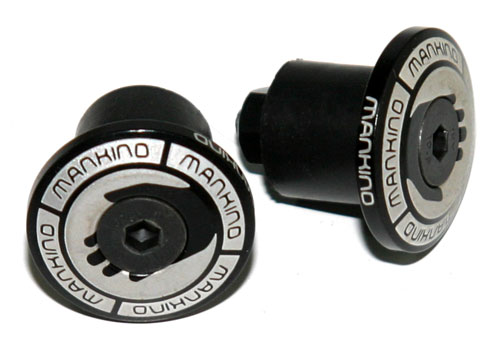

Identity Barends - Black / Green / Silver / White / Gold / Purple

> Alloy caps
> Rubber wedge
> Weight 36g pair

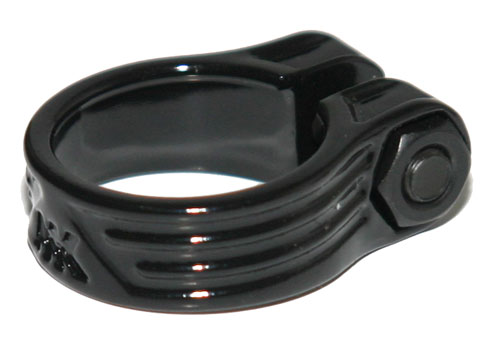

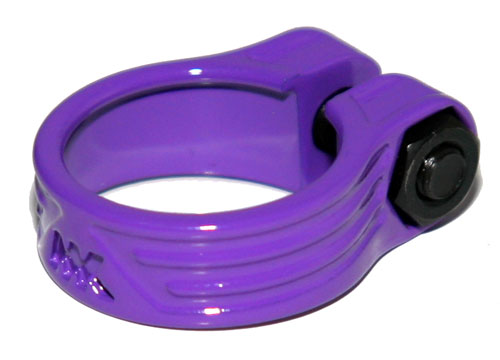

Archangel slim seat clamp - Black / Purple / White

> CNC Machined from cromolly
> Weight 24g

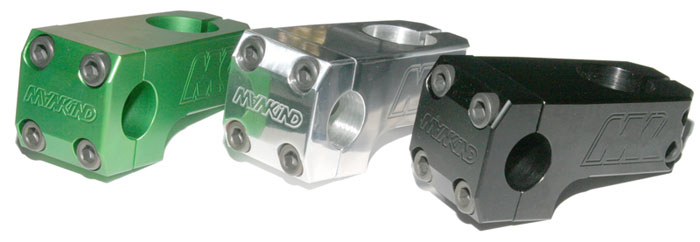

Archangel Stem - Black / Green / Silver / White / Gold / Purple

> CNC Machined from 7075 Alloy
> Reach: 50mm
> Machined MK logo
> Laser etched gyro plate
> Weight 312g

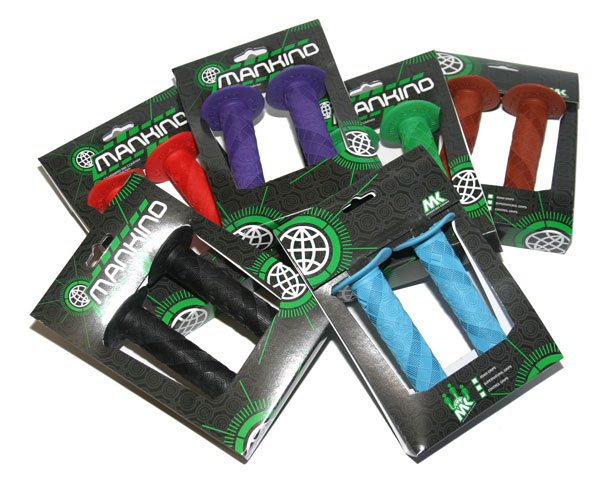

Asadi phase 2 grips - Black / Brown / Green / Purple / Red / Blue / White / Clear

> Soft Krayton rubber
> Unique Asadi design
> With plastic barends

New Clear Mankind grips

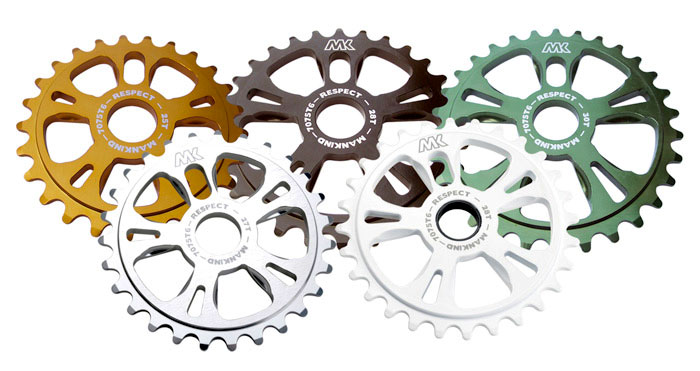

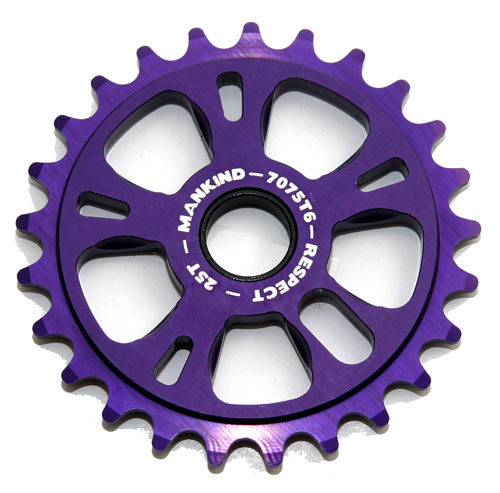

Respect Sprocket - Black / Green / Gold / White / Silver / Purple / Pearl Red / Pearl Blue

> CNC Machined from 7075 Alloy
> Available in 25t, 28t and 30t sizes
> 5mm thick
> Weight 25t 60gr / 2.11oz, 28t 76gr / 2.68oz, 30t 94gr / 3.31oz

Integrated headset - Black / Green / Gold / White / Silver / Purple

> High quality integrated headset

Mid or Spanish BB kits - Black / Green / Gold / Purple / Silver / Pearl Red / Pearl Blue

> High quality Mid or Spanish BB kit
> Available in 19mm or 22mm
> Comes with spacers, CW washer and crank bolt

Mankind Euro BB kits / 19mm or 22mm // Silver

> Quality sealed bearings
> Alloy
spacers
> Weight 220g

> 29 assorted Mankind stickers
> Assorted colours

Mankind better place t-shirt // black / red / white

> Printed on quality 100% cotton shirts
> Small, Med, Large or XL available

Mankind crest t-shirt // black / grey / red / white

> Printed on quality 100% cotton shirts
> Small, Med, Large or XL available

Mankind justice t-shirt // black / white

> Printed on quality 100% cotton shirts
> Small, Med, Large or XL available

Mankind paint t-shirt // black / white

> Printed on quality 100% cotton shirts
> Small, Med, Large or XL available

Mankind we stand t-shirt // purple / red / white

> Printed on quality 100% cotton shirts
> Small, Med, Large or XL available

Mankind crest zip hood // grey

> Printed on quality 100% cotton zip hood
> Small, Med, Large or XL available


Black not grey

Mankind better place zip hood // black

> Printed on quality 100% cotton zip hood
> Small, Med, Large or XL available

Note this hood is only available in black

Mankind we stand zip hood // grey

> Printed on quality 100% cotton zip hood
> Small, Med, Large or XL available
