kickassbmx products proper bike co

Check out the Proper bikes web site at www.properbikeco.com

Proper Bike Co. make some really nice frames and parts including some super light hubs. Luke Barling and Dan Baker ride for Proper in Australia.

Click here for BB and Head set bearing kits

Mike Miller TTL Frame 20.6", 21" or 21.2" top tube // Metallic blue, grey, raw or translucent red.

> 100% seamless 4130 Crmo tubing
> Headtube, bottom bracket and dropouts heat-treated
> Laser cut 5mm dropouts
> Built in seatclamp
> Double butted toptube and downtube
> 20.6" top tube - chain stay = 345mm / 13.58" Slammed
> 21" and 21.2" top tube - chain stay = 353mm / 13.9" Slammed
> 75° head / 71° seat angle
> Spanish BB
> Internal headset
> With removable gyro tabs, cable guides and U-Brake mounts
> Weight 2.0 kg / 4.4lbs

This is the latest 2010 version of the TTL frame. Proper update the TTL frame a little on each batch. This time they have shaved the seat tube for a more ergonomic look and to shed unnecessary ounces and also narrowed the OD (outside diameter) of the headtube which means the downtube wraps much further round and creates a stronger junction. On each delivery we get different colour options and this drop will be your only chance to own a Copper TTL frame.

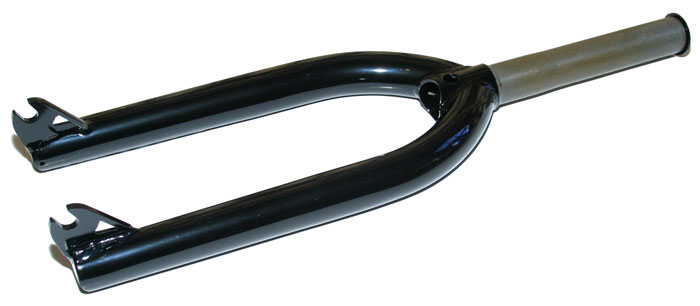

Team forks // White

> Tapered legs
> Built in headset bottom race
> Laser cut dropouts
> CNC machined pre load bolt
> Weight 890g

Smash bars // Black or chrome

> 9-butted crmo tubing super light and strong
> Upsweep: 2 degrees, Backsweep: 10 degrees
> Rise 8”
> Width 28"
> Weight 870g

Team bars // Red, silver or raw

> 9-butted crmo tubing super light and strong
> Upsweep: 2 degrees, Backsweep: 10 degrees
> Rise 8”
> Width 28"
> Weight 870g

TTL bars // Black or grey

> 9-butted crmo tubing super light and strong
> Upsweep: 1 degrees, Backsweep: 11 degrees
> Rise 8.25”
> Width 28''
> Weight 860g

TTxL bars // Black or grey

> 9-butted crmo tubing super light and strong
> Upsweep: 1 degrees, Backsweep: 11 degrees
> Rise 8.75”
> Width 28''
> Weight 870g

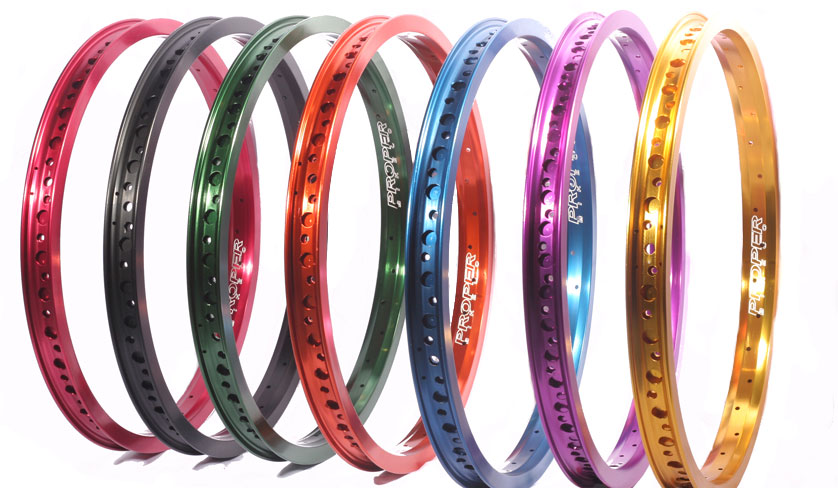

Proper rims // Black / Gold / Green / Red / Blue / Chrome / Brown / Purple / White / Grey / Orange

> 20" x 1.75"
> 7075 Alloy
> 36 hole
> Strong double wall construction
> 32, 36 or 48
> Weight 495g each

Click here for spokes and spoke length calculations

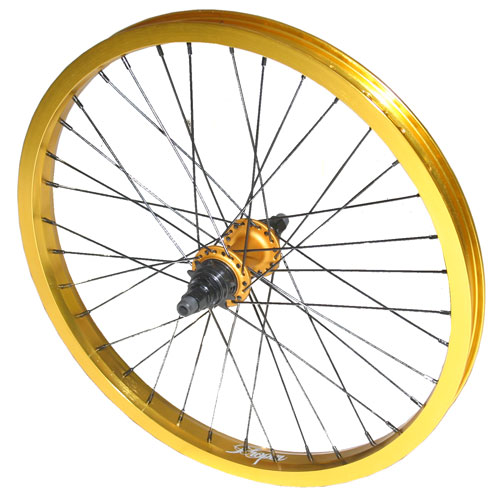

Proper wheel sets Front or rear in Black, Gold, Red, Blue, Chrome, Brown, Purple, White, Orange, Green or Grey, Custom builds available too

> Any rim and hub colour with black or silver spokes
> Available in 32 or 36 front and 36 rear
> Black or silver stainless steel spokes
> MagLite ceramic bearing rear cassette hub with sealed bearings and 14mm hollow crmo axle
> 9 or 10 tooth driver
> Maglite front hub, low flange sealed bearing with 3/8 crmo axle
> Front and rear available separately
> Weight front 949g rear 1180g

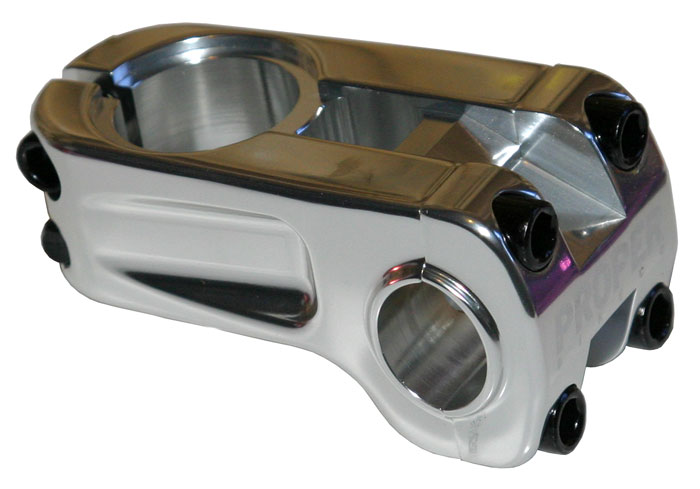

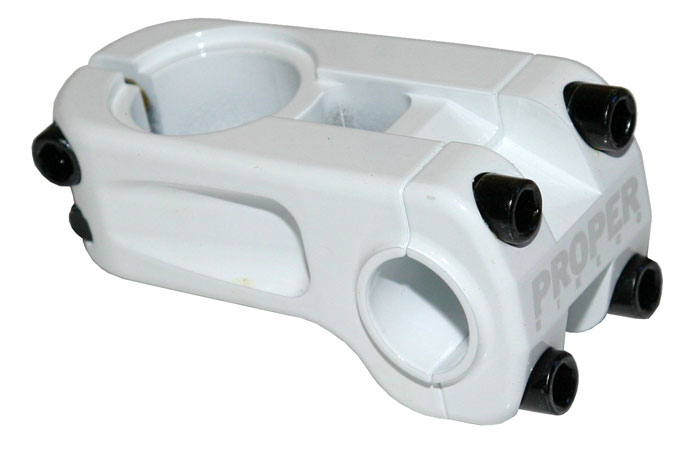

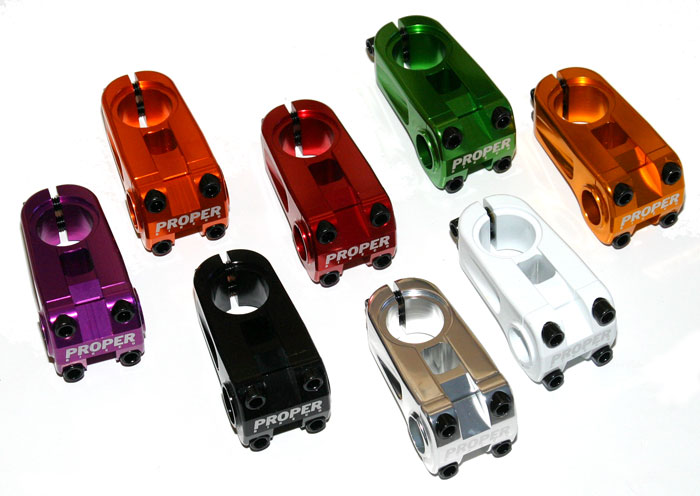

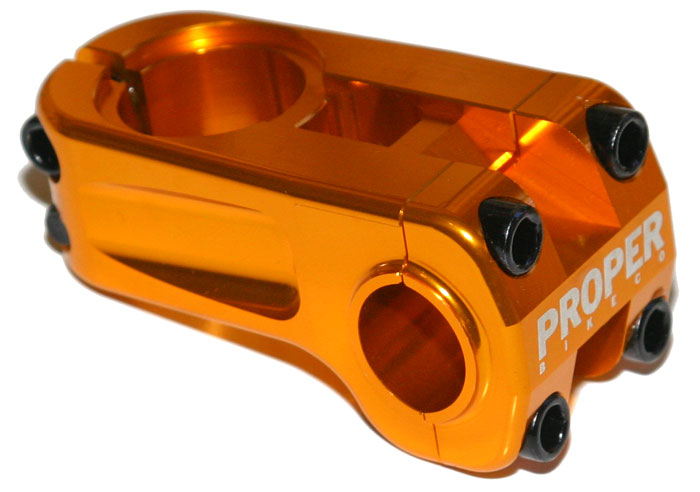

Proper microlite stem // Black / Gold / Red / Blue / White / Purple / Orange / Green / Silver / Grey

> CNC Machined from 7075 Alloy
> Reach: 52mm
> Weight 249g

This is the new teal / Green colour

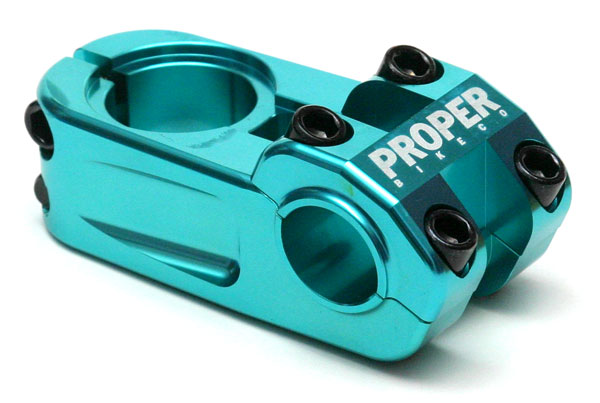

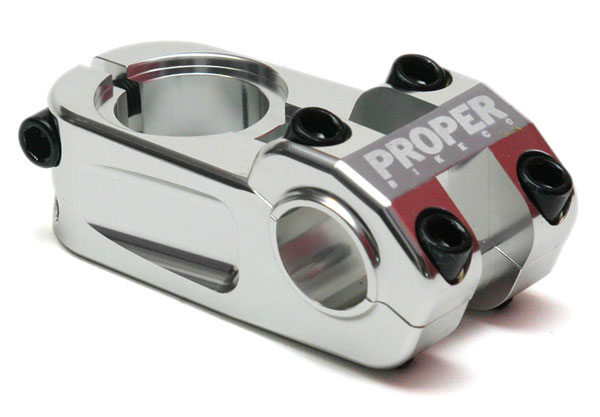

Proper microlite topload stem // Black / Gold / Red / Blue / White / Purple / Orange / Green / Silver / Grey

> CNC Machined from 7075 Alloy
> Reach: 52mm
> Weight 249g

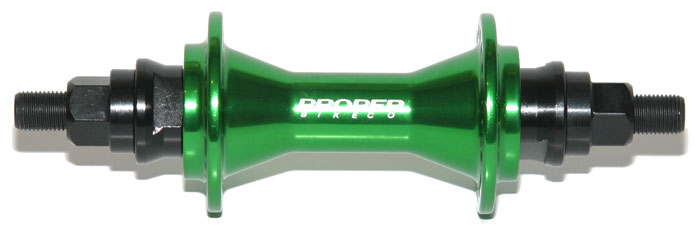

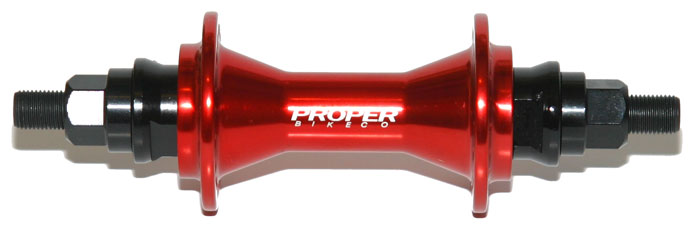

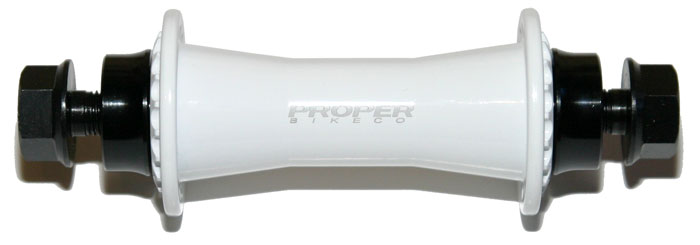

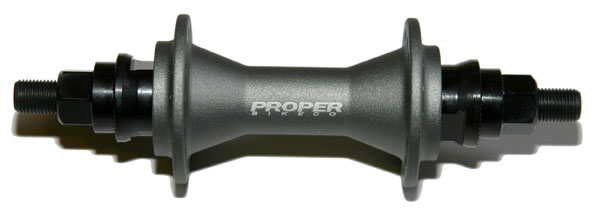

MagnaLite front hub // Black / Gold / Red / Blue / White / Orange / Green / Silver / Brown / Grey LTD

> Available in 32 or 36 hole
> 3/8 Heat Treated crmo axle
> High quality sealed bearings
> Large alloy cones for extra strength
> Uses 2 x 6000 bearing
> Super light 209g

Click here for spokes and spoke length calculations

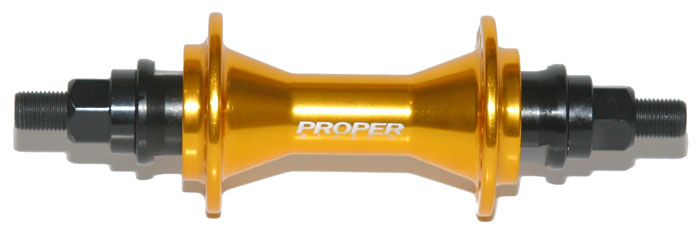

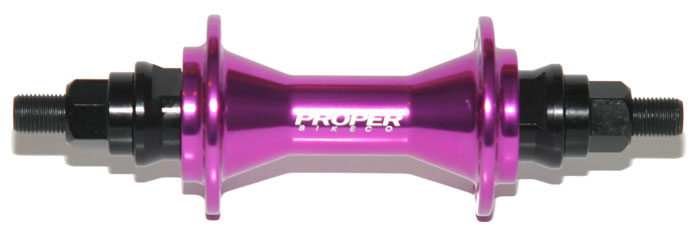

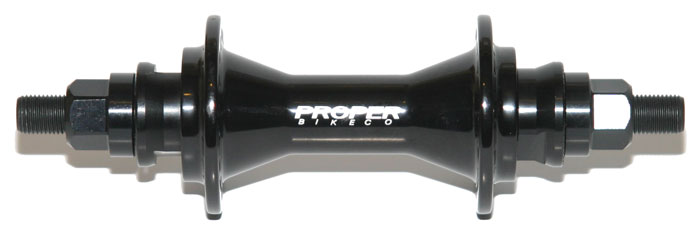

Proper maglite front hubs are available in a super shiny gloss finish, like this:

or an anodised finish stil in stock like this:

So check with us when you are ordering so you get a matching pair...

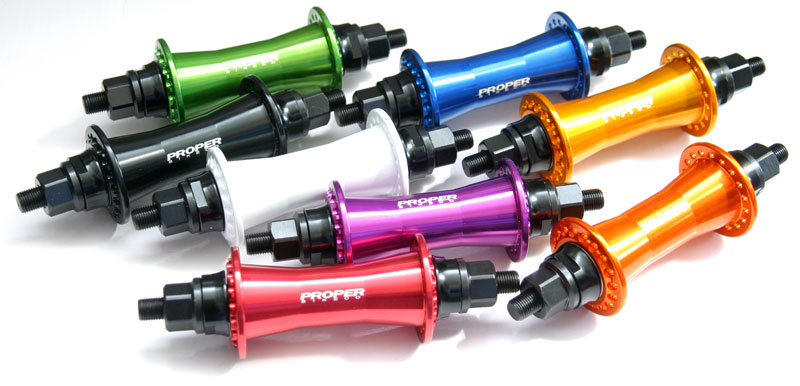

Microlite female front hub // Black / Gold / Red / Blue / White / Purple / Orange / Green / Grey

> Available in 36 hole
> 14mm alloy axle with 3/8 bolts
> High quality sealed bearings
> Large alloy cones for extra strength
> Uses 4 x 6802 bearing
> Super light 180g

Click here for spokes and spoke length calculations

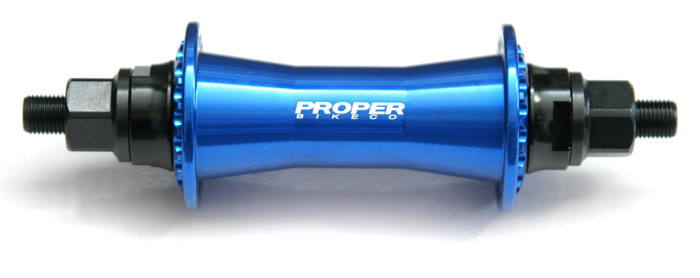

Microlite 3/8 front hub // Black / Gold / Red / Blue / White / Purple / Orange / Green / Grey

> Available in 36 hole
> 3/8 crmo axle
> High quality sealed bearings
> Large alloy cones for extra strength
> Uses 2 x 6000 bearing
> Super light 195g (with alloy axle nuts)

Click here for spokes and spoke length calculations

Rear hubguard // Black / Gold / Red / Blue / White / Purple / Orange / Green / Grey

> Fits Proper rear casette hubs and some other ceramic driver hubs like Simple or Colony
> Weight 80g

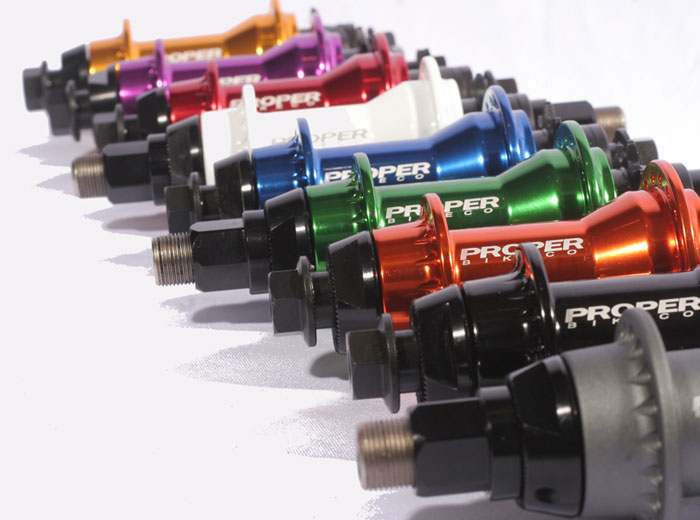

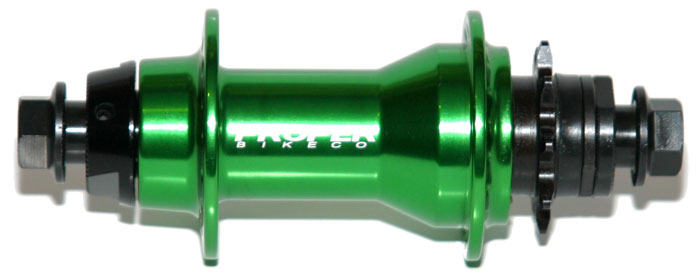

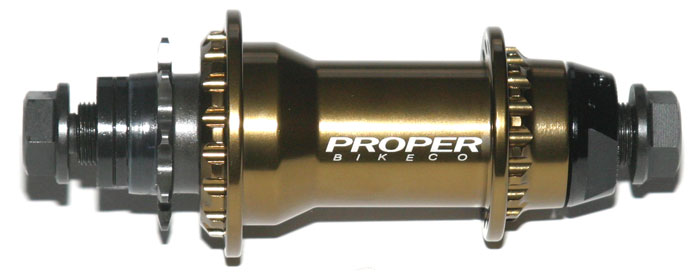

MagnaLite ceramic driver rear hub // Black / Gold / Red / Blue / White / Purple / Brown / Grey LTD / Orange / Green / Grey

> Available in 36 hole
> Available in one peice 14mm or female bolt type axle
> Hollow 8000 series Heat Treated crmo axle
> New 4 pawl driver with ceramic bearing, no more blown bearings...
> RHD or LHD
> High quality sealed bearings
> Large alloy cones for extra strength
> Available with 9t through to 14t drivers available
> Uses 2 x 6902 bearing
> Weight under 400g - One of the lightest casette hubs available

The new Proper ceramic bearing hubs use a ceramic bush instead of the usual 3 small sealed bearings. The ceramic material is very hard wearing but also runs like a bearing so there's very little friction. These ceramic bearings will last for ages because the forces coming through from the chain is spread over a much larger area than with regular bearings... The drivers are available with 9t through to 14t cogs and because the ceramic bush takes up less space the whole driver can be made smaller, which also saves weight.

Click here for spokes

This is the new teal / green colour, we still have some hubs in stock in the old regular green as well so let us know which one you are after when you order.

This is the old regular green colour.

Cassette cogs // Black

> Fits all Proper bikes cassette hubs
> Available in 9t, 10t, 11t, 12t, 13t and 14t
> Heat Treated Crmo
> CNC machined

Double butted spokes // White / Dark Blue / Black / Yellow / Green / Trans Purple / Trans Green / Trans Blue / Trans Red

> 184mm, 186mm, 188mm, 192mm or 194mm
> Double butted
> Heat treated
> 50pc per bag with nipples

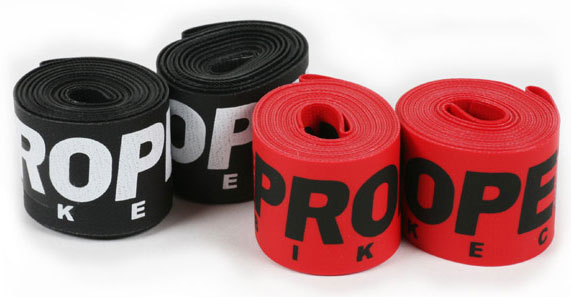

Rim tape // Black / Red

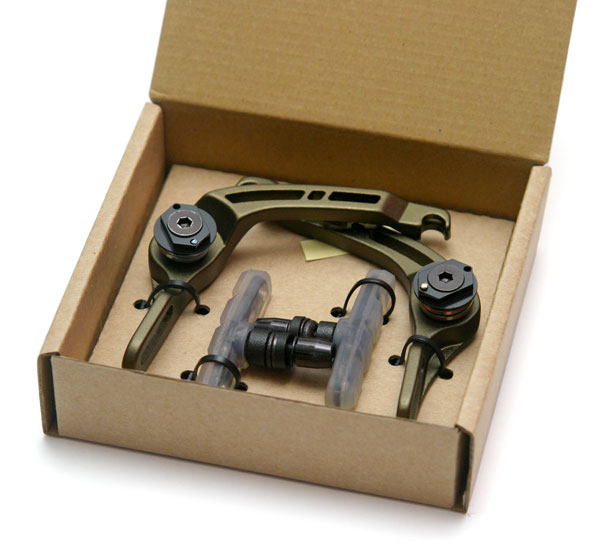

U-Brake // Black / Blue / Red / Purple / White / Gold / Orange / Green / Grey

> CNC machined
> Extra stiff design
> Comes with CNC cable bridge
> Sintered brass pivots (helps stop break noise and vibrations)
> Comes with soft clear Koolstop pads
> Weight with all hardware 152g

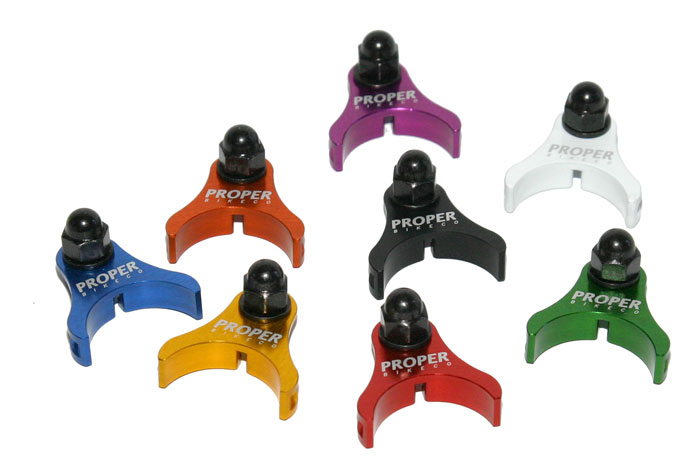

Cable hanger // Black / Blue / Red / Purple / White / Gold / Orange / Green / Grey

> CNC machined cable hanger

Clear brake pads // Clear

> Sticky pads for anodised rims

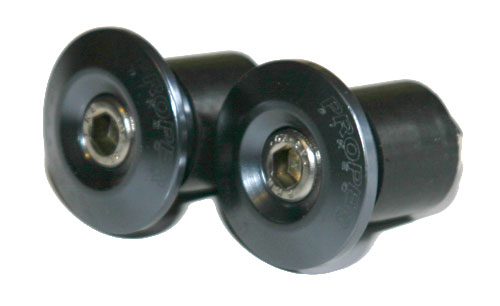

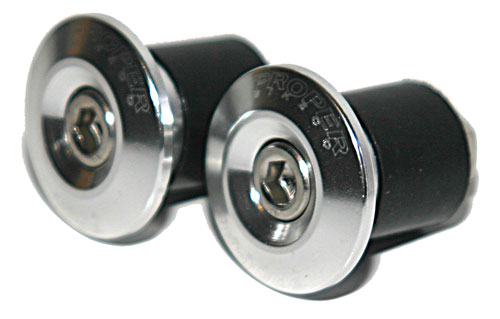

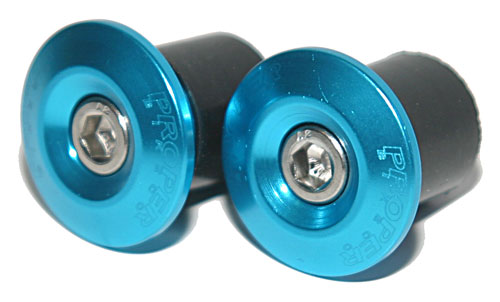

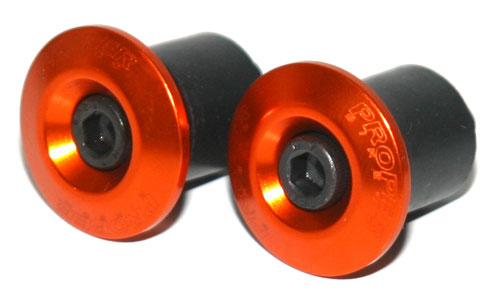

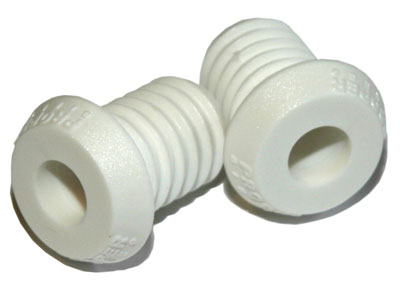

Bar ends // White / Gold / Orange / Green

> Alloy cap with rubber wedge

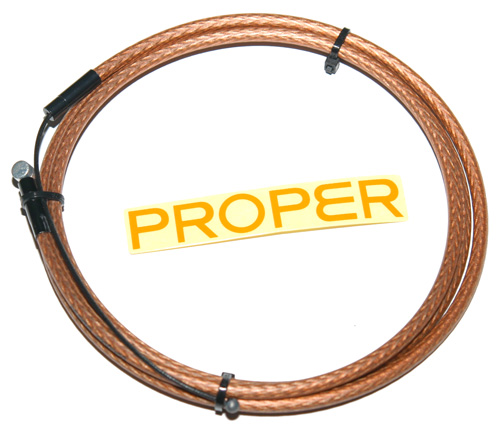

Firewire linear cable // Black / Pink / Brown / Purple / White / Light Green / Orange / Clear

> Smooth Teflon coating
> PTFE coated multi stranded wire
> Stiff outer cable for no kinks
> Regular BMX cable end as well as small round ball for lower gyro setups
