Check out the St Martin website at www.stmartinbmx.com
St Martin is
a French flatland company, they make some really tech and lightweight frames and
parts. Tomasz
Hantke rides for StMartin in Australia.
|
| Click
here for BB and Head set bearing kits |
|
Gaia
18.5” top tube // Pearl
brown
>
Taka (Nishikawa Yoshihiro)
signature model
> 100 % Sanko cr-mo tubing
>
Double butted top tube and down tube
> Narrow rear triangle: seat stays and chain stays are welded INSIDE
dropouts to reduce overall width
> Interupted seat tube with weld-on seat clamp
> 4 mm dropouts for 3/8" axle (heat treated)
> Integrated chain tensioners inside dropouts
> Spanish bottom bracket (heat treated)
> Removable brake lugs, cable stops (for dual lower cable) and gyro tabs
> Chainstays: 12.0"
> Head angle: 74.5°, Seat angle : 71°, BB height : 11.8"
> Weight 1.69 kg / 3.73 lbs
|
|
Eifel
18.9” top tube // Red
>
100% Japanese Sanko 4130 crmo tubing
>
Double butted top tube and down tube
> Narrow rear triangle: seat stays and chain stays are welded INSIDE
dropouts to reduce overall width
> 4mm
heat treated dropouts, cut for 3/8 axle
> Removable
gyro tabs, u-brake and cable guides
> Integrated chain tensioners inside dropouts
> 3 in 1 cable stop
> Spanish BB and Integrated Headset
> Head tube and BB shell machined & heat treated
> 75° head angle / 71° seat angle / Chain stay 12.0" / BB height
299mm
> Weight
1.75 kg / 3.8 lbs
|
|
Diamond 18.7” top tube // Grey
>
100% Japanese Sanko 4130 crmo tubing
>
Double butted top tube and down tube
> Narrow rear triangle: seat stays and chain stays are welded INSIDE
dropouts to reduce overall width
> 4mm
heat treated dropouts, cut for 3/8 axle
> Removable
gyro tabs, u-brake and cable guides
> Integrated
seat clamp
> Integrated chain tensioners inside dropouts
> 3 in 1 cable stop
> Spanish
BB and Integrated Headset
> Head tube and BB shell machined & heat treated
> 75° head angle / 71° seat angle / Chain stay 12.0" / BB height
299mm
> Weight
1.72 kg / 3.8 lbs
|
|
ClassX
18.1” or 19” top tube // Red
>
100% Japanese Sanko 4130 crmo tubing
> Double
butted top and down tubes
> 5mm
heat treated dropouts, cut for 3/8 axle
> Removable
gyro tabs
> Integrated
seat clamp
> 3 in 1 cable stop
> Euro
BB and Integrated Headset
> Head
tube and BB shell machined & heat treated
> 75° head angle / 71° seat angle / Chain stay 12.6”
> Removable
U-Brake on seatstays
> Weight
1.85 kg / 4.0 lbs
|
|


|

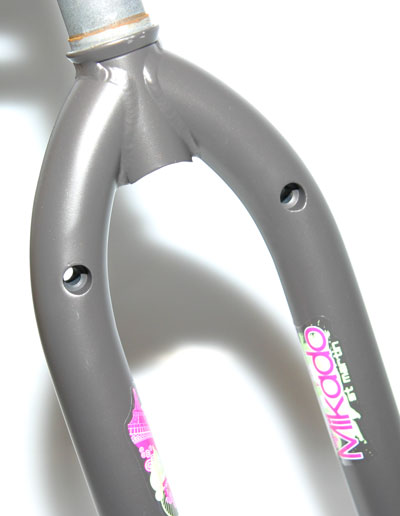

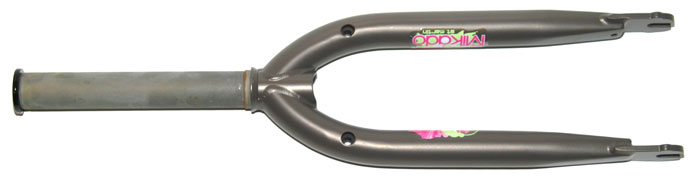

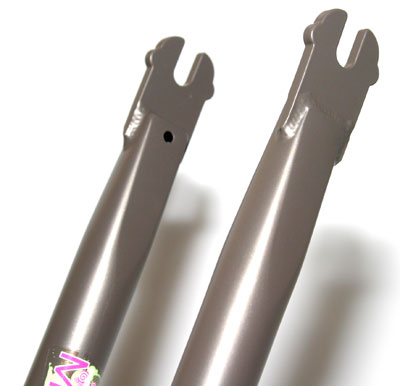

Mikado fork
//
Black
or Red
>
100% heat treated crmo
>
0° degree offset
> Narrow lower legs
> Small 5mm dropouts
> M25 top cap for dual cables, 7075-T6 alloy
> Removable brake lugs
> 177 mm long steer tube
> V-cut steer tube for optimized cable route
> Weight 820g
|
|


|

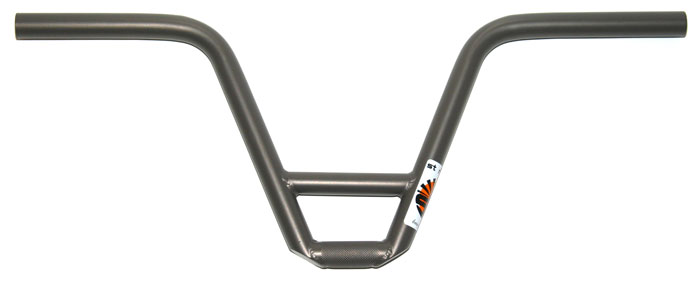

Eien bars //
Black
or Red
>
100% heat treated crmo
>
8" rise x 23" wide
> Low 19mm diameter crossbar
> 1°
backsweep, 1°
upsweep
> Weight 630g
|
|



|
Hollopeg pegs //
Black
/ Dark blue / Grey
>
6061-T6 alloy
> 38mm diameter
> Length 110mm
> Knurled area for grip
> Smooth round ends for less shoe damage
> Weight 105g each
|
|

|
Unique pegs //
Black
/ Dark red / Shiny green
>
7075-T6 alloy
> 38mm diameter
> Length 112mm
> Knurled area for grip
> Smooth round ends for less shoe damage
> Weight 120g each
|
|
|
X26
Stem //
Black
/ Grey
> 26mm
reach
> 4 hollow bolts
> Includes St-Martin sweat-band
> Weight 170g
|
|
|
Hollohub
front hub //
Black
>
6061 T6 alloy
shell
>
7075-T6
alloy female axle
>
7075 alloy cones and washers
> 3/8" / 24tpi flush bolts included
> 36
hole
> Weight 190g
|



|
Domino rim // Black
/ Dark Gold / Silver / Brown
> Brakeless
wealded rim
> 36 hole
> Ideal for super light front wheel but can be used on the rear too
> Superstar / StMartin rim tape included
> Weight 425g (super light)
|
|
|
Hollowflat
2010 flatland cranks //
Black
>
7075-T6
alloy arms / Length 150mm
> Works with any chainwheel
> 22mm
hollow crmo axle works with all BB’s
> Weight
595g
|
|
|

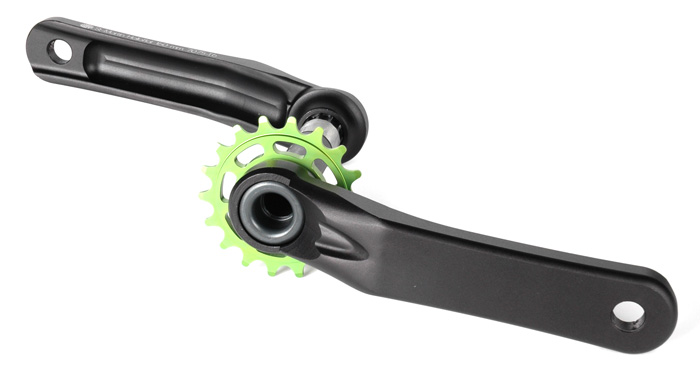

Hollowflat
flatland cranks //
Black
/ Dark red / Shiny green
>
7075-T6
alloy arms / Length 160mm
> Special
threaded chainwheel works with RHD only
> Chainwheels available in 16t, 18t, 20t or 24t in matching colours
> 22mm
hollow crmo axle works with all BB’s
> Weight
590g
|
|
|
English
chainwheel //
Black
>
7075-T6
alloy
> 4 mm thick
> 22 mm hole + 19 mm adaptor
> 16T = 15 grams / 0.53 oz
> 18T = 19 grams / 0.67 oz
> 20T = 25 grams / 0.89 oz
|
|
|
Barends
//
Black
/ Dark red / Shiny green
>
6061
T6 alloy
> Single
bolt
> weight 32g
|
|
|

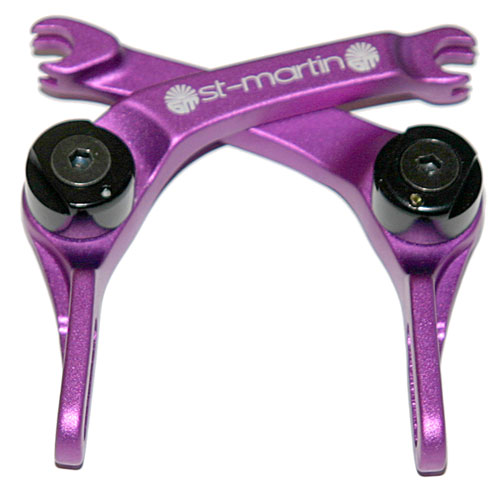

Front
U-Brake //
Black
/ Dark red / Shiny green / Dark blue / Grey
>
Forged
6061 T6 alloy
> Special
bearings in the arms
> Soft
brake pads
|
|
|

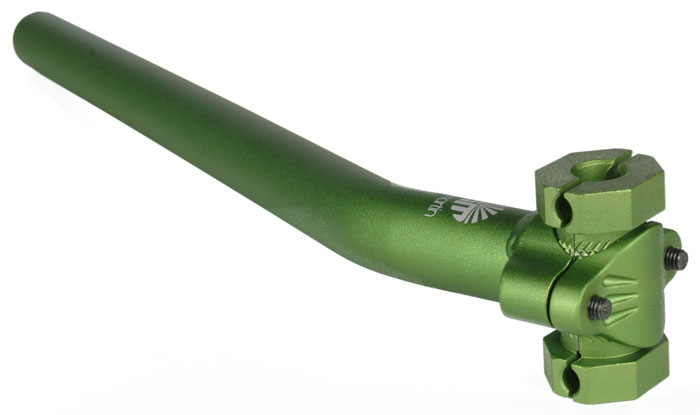

Long
seat pole //
Black
/ Dark red / Shiny green / Purple
>
Forged
6061 T6 alloy
> 390mm long
> Weight 310g
|
