Superstar is a French BMX company, they make some really lightweight frames and parts. Superstar also have a flatland brand St Martin. Will Gunn rides for Superstar in Australia.

Click here for BB and Head set bearing kits


Beige/green colour the same as this newdeal frame

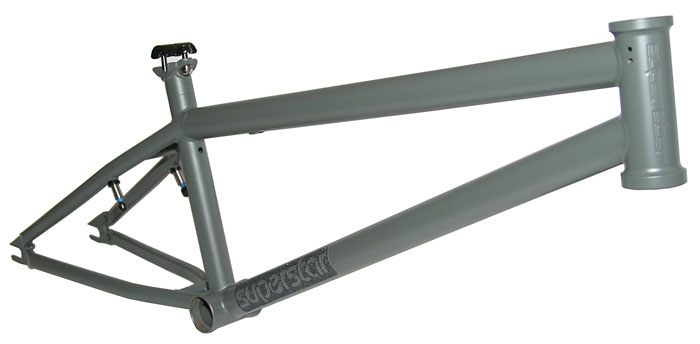

Mirror // 21” // Grey / Black / Matt beige/green

Options available:
Black with Pivotal post
Grey with rail post
Matte beige/green with rail post

Antony Lille's signature street frame, full heat treated after welding.

> 100% Japanese Sanko 4130 crmo tubing, heat treated after welding
> Super small 4mm heat treated dropouts
> Removable gyro tabs, cable guides and U-Brake on seatstays
>
2 cable routes, inside or around seat tube
>
Integrated seat post for rail seat or Pivotal, can be cut to put a seat clamp and normal post.
>
Integrated chain tensioners inside dropouts
> Spanish BB and Integrated Headset
> Head tube and BB shell machined & heat treated
> 19mm D shaped chain stays
>
75.3° headangle / 69° seat angle / BB height 292mm
> Chain stay 13.2"
>
Weight 2.15 kg / 4.75 lbs

ACTUAL SIZES: Due to the 69° seat angle the Mirror 21" frame will rider like a 20.6" / 20.7" frame but with more room between handlebar and seat.

PEG USE: The Mirror frame is designed to run with Superstar Micropegs, instead of real pegs. Peg use on Mirror frames will cancel the warranty.

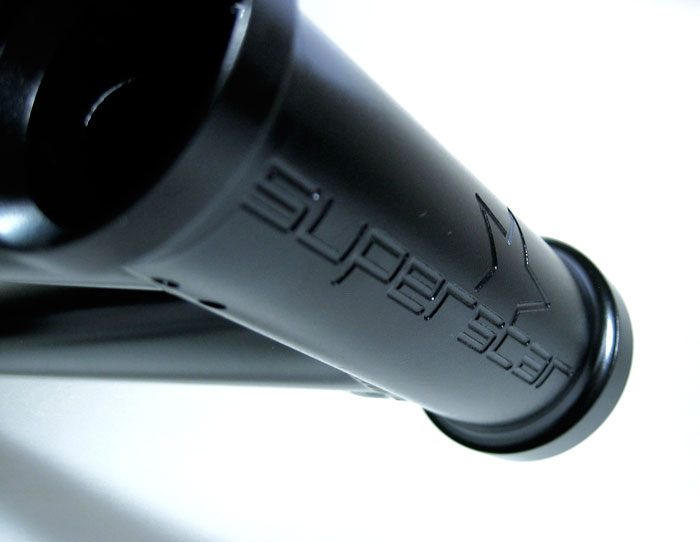

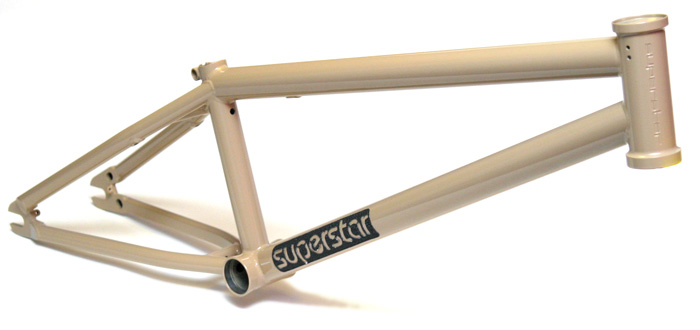

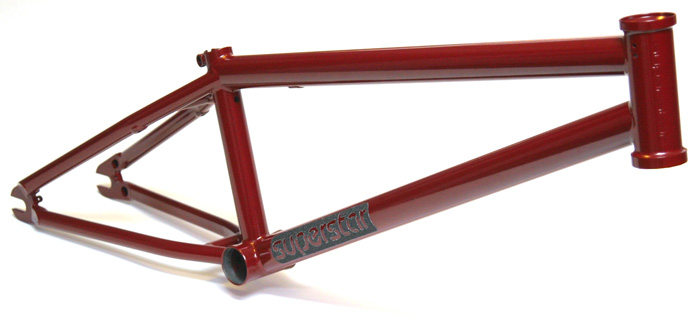

Cooper // 20.75", 21” or 21.25” // Red, Brown, Black, Yellow, Burgundy or Dark Sand

Modern all around street frame, pegs compatible

> 100% Japanese Sanko 4130 crmo tubing
> 5mm heat treated dropouts
> Removable gyro tabs, cable guides and U-Brake on seatstays
>
2 cable routes, inside or around seat tube
>
Integrated chain tensioners inside dropouts
> Small integrated seat clamp

> Spanish BB and Integrated Headset
> Head tube and BB shell machined & heat treated
> 19mm D shaped chain stays
>
75° headangle / 69° seat angle / BB height 294mm
> Chain stay 13.2"
>
Weight 2.15 kg / 4.75 lbs

ACTUAL SIZES: Due to the 69° seat angle, Cooper frames feel shorter than their size but with more room between handlebar and seat.

Cooper 20.75" feels like a 20.3" / 20.4"
Cooper 21.00" feels like a 20.6" / 20.7"
Cooper 21.25" feels like a 21.0" / 21.1"

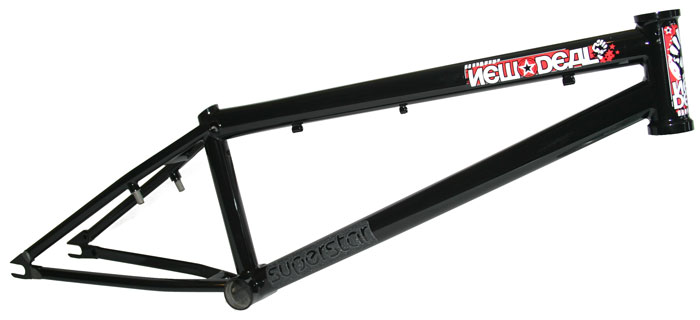

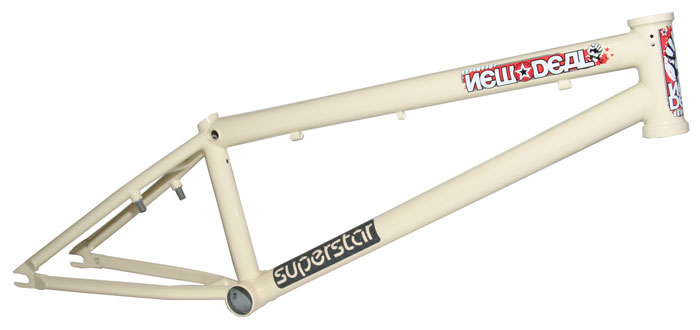

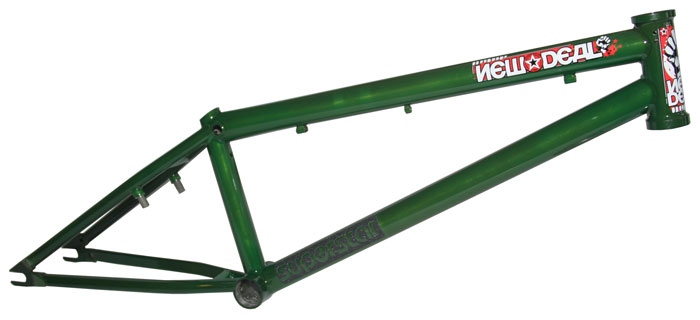

New Deal // 20.7", 21” or 21.4” // Royal blue, Lagoon green, Black, Matt beige/green or Army Green

> 100% Japanese Sanko 4130 crmo tubing
> Super small 4mm heat treated dropouts
> Removable gyro tabs, cable guides and U-Brake on seatstays
>
2 cable routes, inside or around seat tube
> Integrated chain tensioners inside dropouts
> Integrated seat clamp in top tube
> Spanish BB and Integrated Headset
> Head tube and BB shell machined & heat treated
> 19mm D shaped chain stays
>
75° headangle / 70° seat angle / BB height 294mm
> Chain stay 13.4"
>
Weight 2.15 kg / 4.75 lbs

Upgrades for 2009 include, higher quality tubing , integrated chain tensioners inside dropouts, removable brake lugs , removable cable stop and engraved head tube logo.

ACTUAL SIZES: Due to the 70° seat angle, New Deal frames feel shorter than their size but with more room between handlebar and seat.

New Deal 20.7" feels like a 20.4" / 20.5"
New Deal 21.0" feels like a 20.7" / 20.8"
New Deal 21.4" feels like a 21.1" / 21.2"

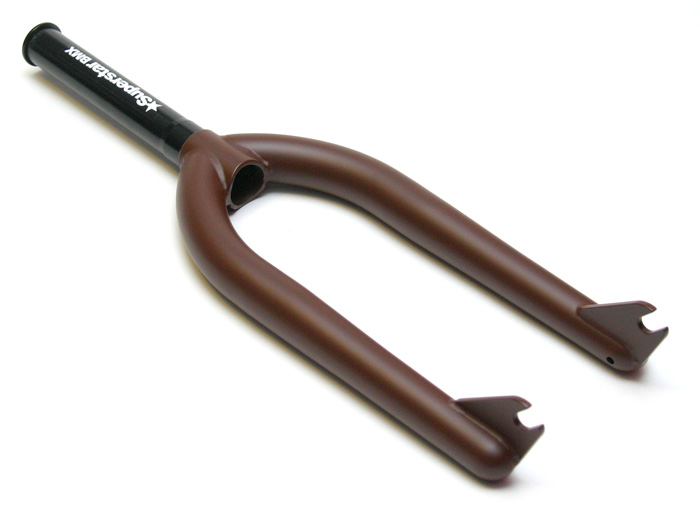

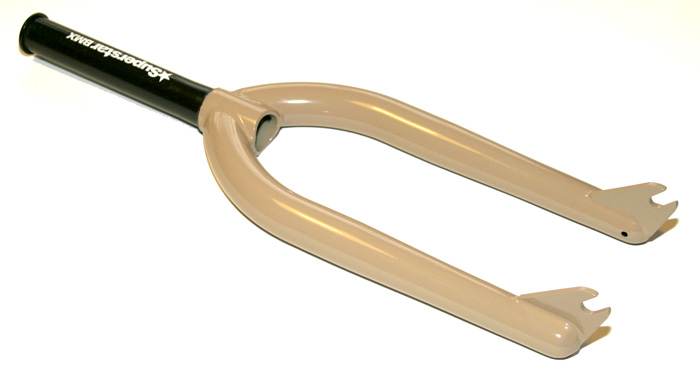

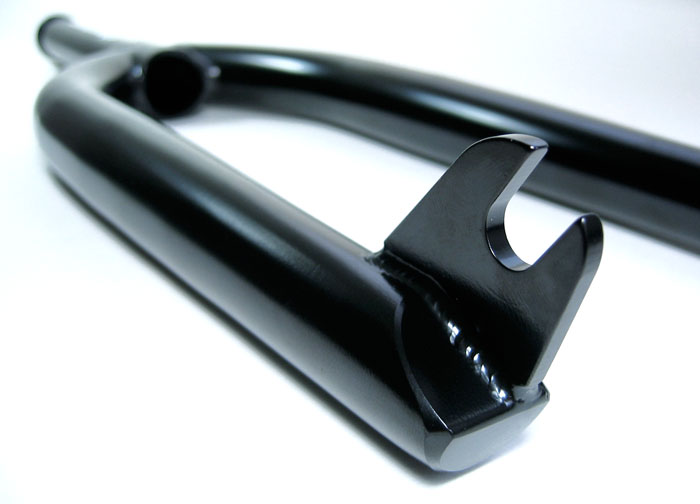

Neutral fork // Black, Burgundy, Mate Beige/green, Brown or Dark Sand

> 100% heat treated crmo
> 1 piece CNC steerer, triple butted and fluted inside
> Integrated crown race
> Triple butted, tapered and fluted legs
> Rounded legs at bottom for less coping / rail hookups
> Ultra small 4mm dropouts
> 33mm offset
> Weight 850g

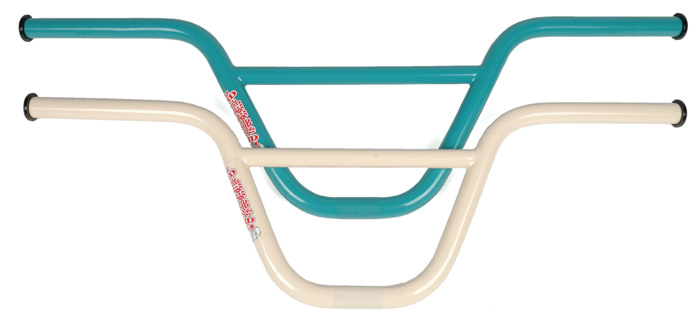

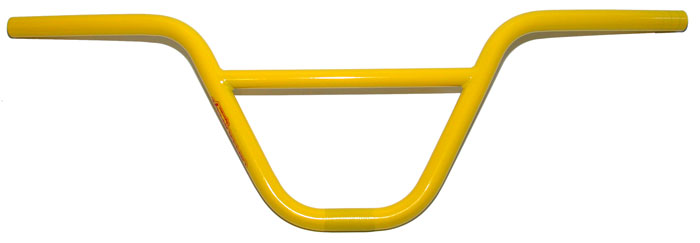

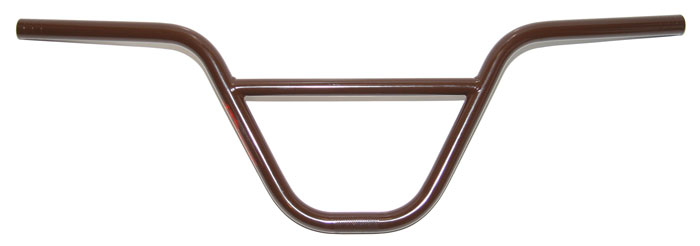

Sweet sweeps bars // Black, Turquoise, Blue, Brown, Yellow, Matt beige, Burgundy or Cream White

> 9 butted crmo
>
Special threaded ends to fit superstar bar ends
> 7.85", 8", 8.15" or 8.3" rise

>
13 degree back sweep
> 4 degree up sweep
> Plastic or Alloy bar ends available
>
Weight 630g

7.85" - Black, Turquoise or Cream White
8" x 28.5" wide -
Black, Blue, Yellow Brown,
Matt beige or Burgundy
8.15" -
Black, Turquoise or Cream White
8.3" x 28.5" wide -
Black, Blue, Yellow, Brown
, Matt beige or Burgundy

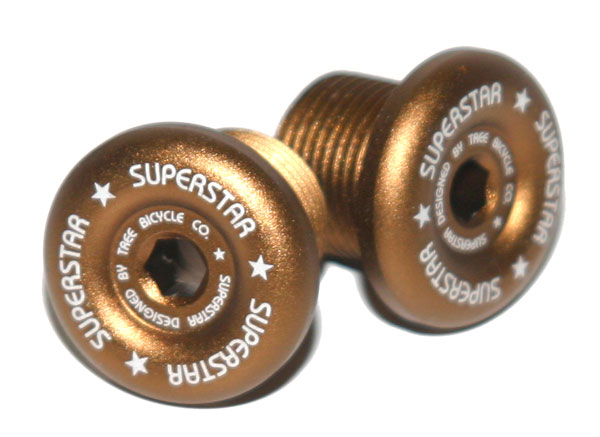

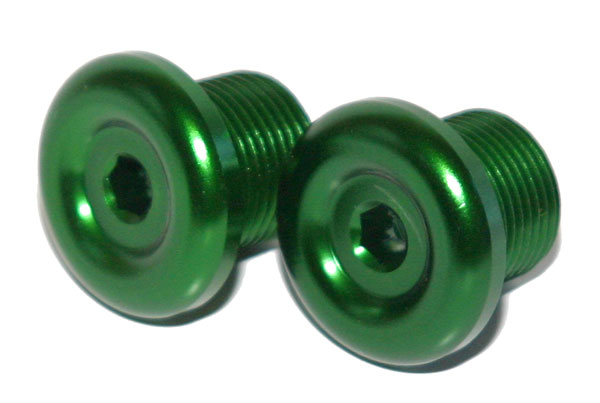

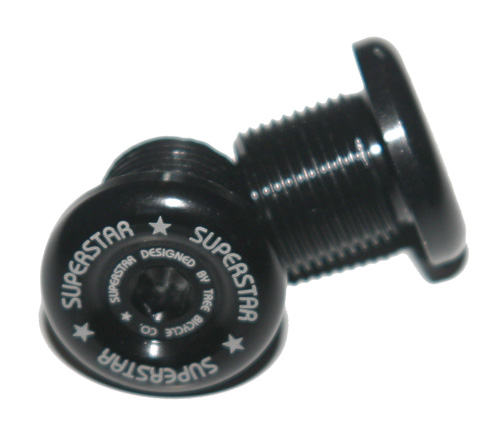

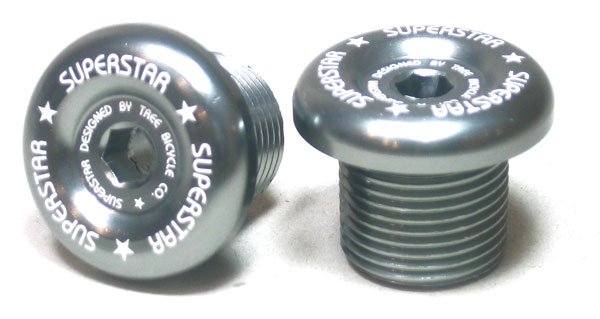

Barends // Black / Dark Gold / Silver / Green / Red / Grey

> For sweet sweeps bars M20 x 1.5mm thread
> Also fits Tree Bike Co bars
> 6061-T6 alloy or plastic version

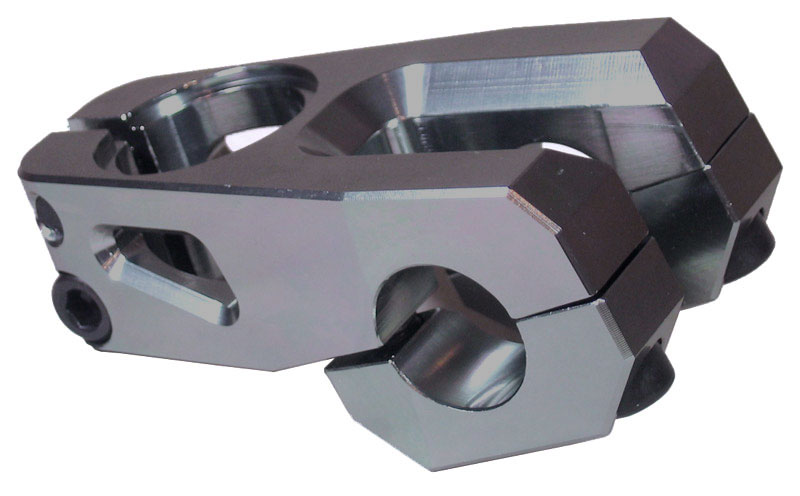

Edge 9 stem // Red / Grey / Black

> Unique top load design
> CNC Billet 6061 T-6 alloy
>
Dissymetrical bar clamps: Tighten the front bolts until the clamp bottoms out then tighten the rear bolts to clamp.
>
Hollow crmo bolts
>
49mm offset
> Weight 258g

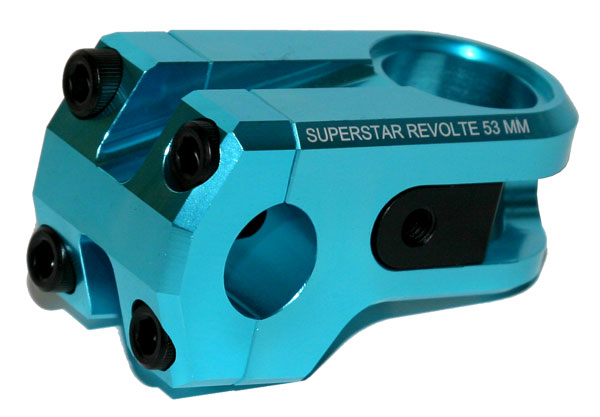

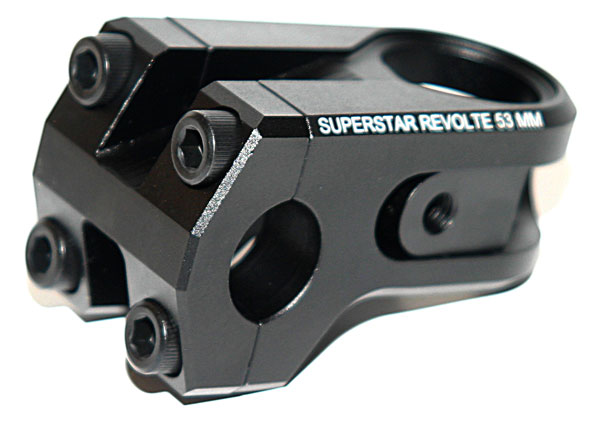

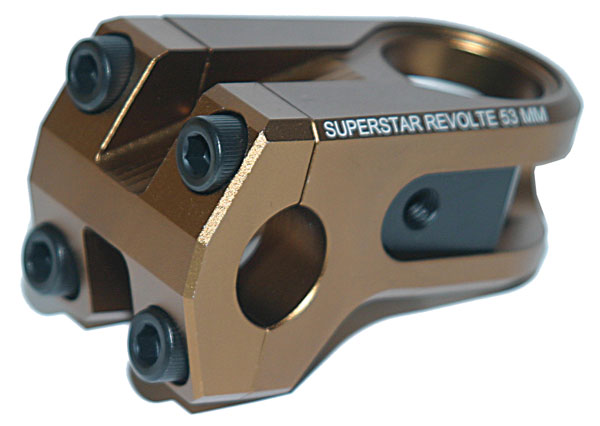

Revolte stem // Black blasted / Clear silver / Dark Gold / Clear blue / Dark red limited

> CNC Billet 6061 T-6 alloy
> Hollow crmo bolts
> 49mm or 53mm offset
> Special thread inserts to prevent bolts striping
>
Weight 265g

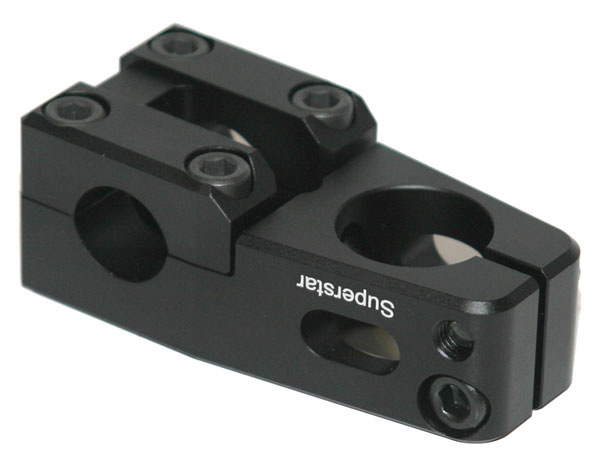

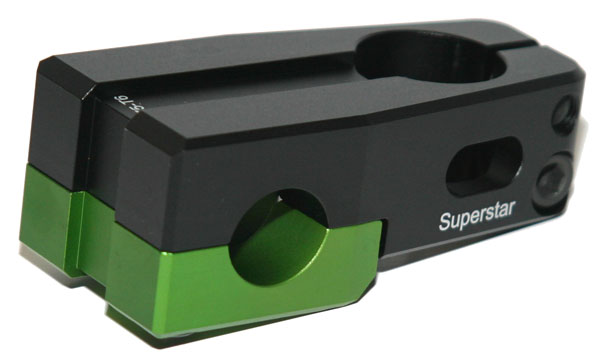

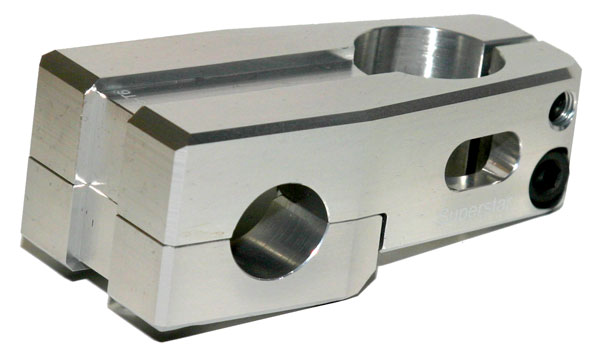

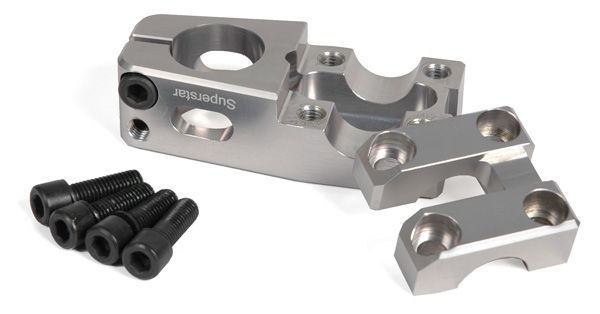

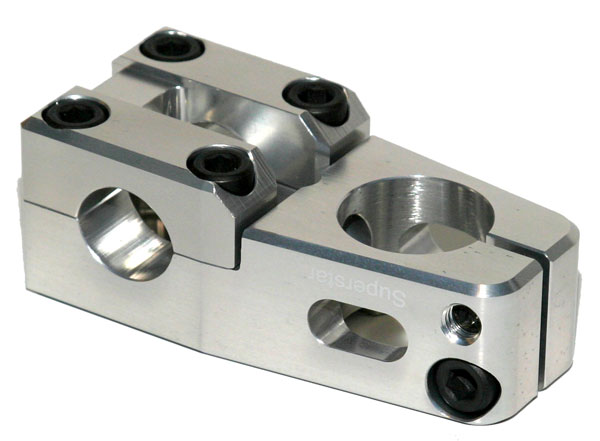

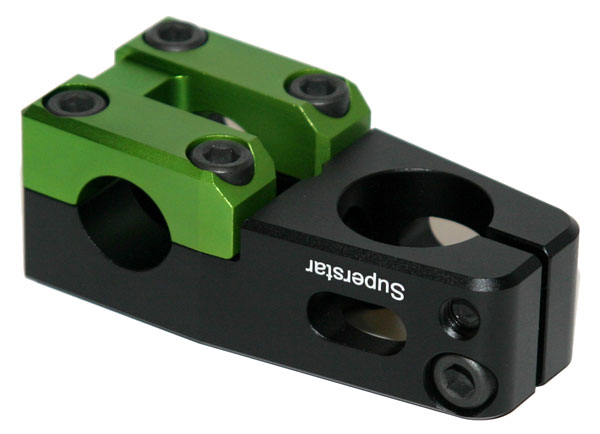

Elect V2 stem // Black blasted / Clear silver

> CNC Billet 7075 T-6 alloy
>
Hollow crmo bolts
>
49mm offset
>
Special thread inserts to prevent bolts striping
>
Weight 310g

Note: there was a misprint on one production run of elect V2 stems where 6061 was printed on the stems. All Elect V2's are made of 7075, even if it says 6061 on the stem.

Hollow stem bolts // Black

> Hollow crmo bolts, light and strong
> M8 x 25mm
>
6mm fits most non US stems
> Packaged as a set of 4
> Weight 11g each

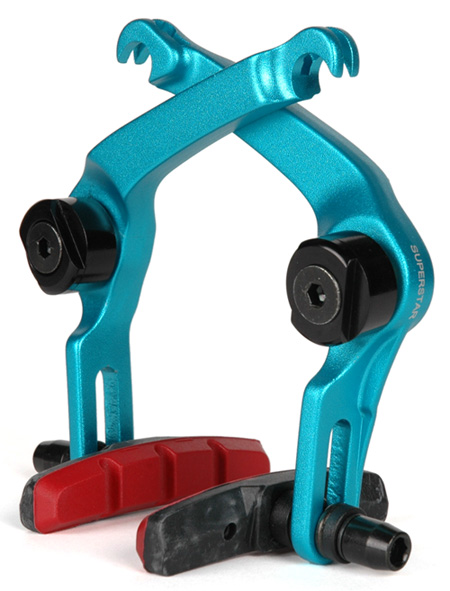

Superstar U-brake // Black blasted / Silver polish / Dark Gold / Grey  / Red

> Forged 6061 T6 alloy
> Unique flat face bearing pivots
> Low stack 22mm
> Custom round cable nuts for accurate cable line
>
Soft pads
>
Weight 207g

Superstrong Half link // Silver

> Really strong, for 1/2" x 1/8" chain only
> German made (by Wippermann)
> Weight 8g

Also Red

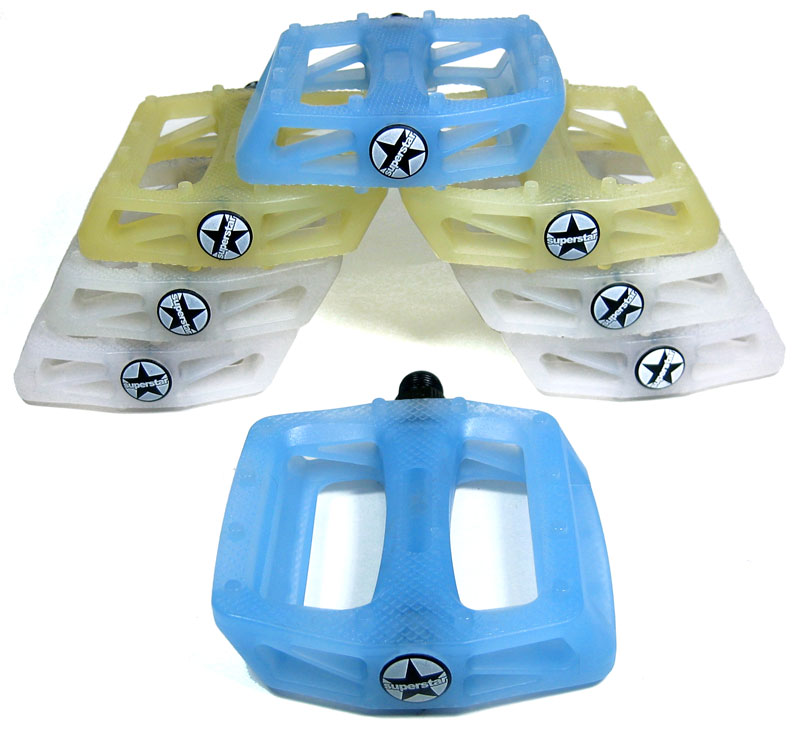

Plastic pedals // Clear Purple, Clear Orange, Clear Green, Clear Red, Clear Blue, Clear, Clear Black

> Lightweight plastic pedals
> 9/16 Crmo axle
> Weight 360g

Plastic pedals // Clear Orange, Clear Green, Clear Blue, Clear, Clear Black

> Lightweight plastic pedals
> With screw in pins for extra grip
> 9/16 Crmo axle
> Weight 410g

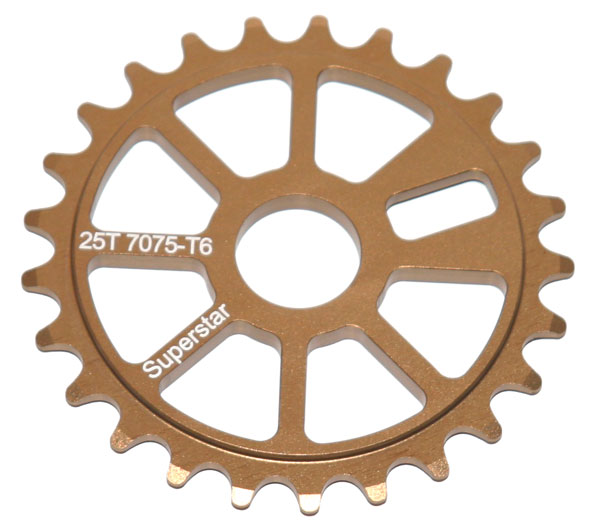

Pimp sprocket // Black / Dark grey / Light gold / Dark Gold

> CNC Billet 7075 T-6 alloy
> 23t 5.0mm thick, 43g
>
25t 6.8mm thick, 56g
> 28t 8.6mm thick, 84g
> 30t 8.6mm thick, 94g

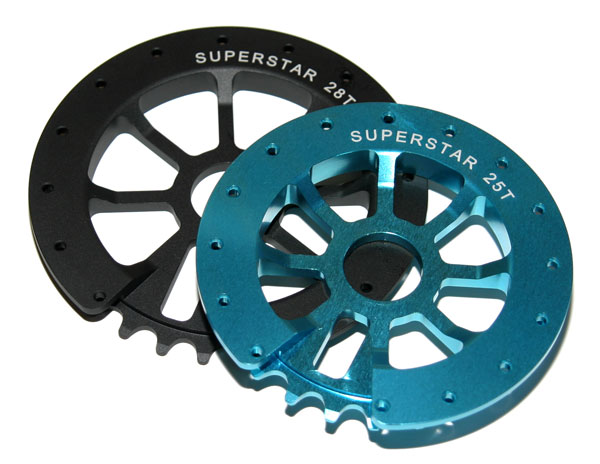

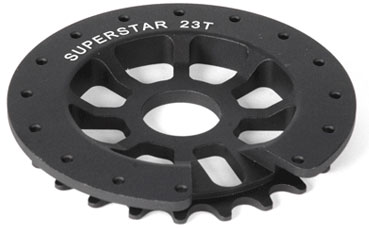

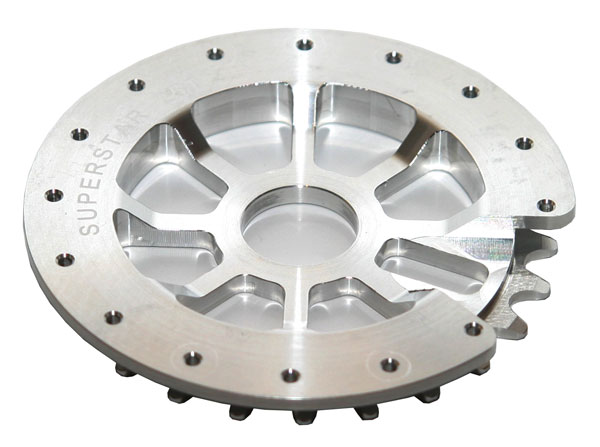

Pimp Disk sprocket // Black / Clear blue / Silver

> CNC Billet 6061 T-6 alloy
>
11.35 mm thick
>
23t = 97g
> 25t = 108g
> 28t = 123g

Light Duty rim // Black / Brown / Gold / Silver

> Brakeless wealded rim
> 36 hole
> Ideal for super light front wheel but can be used on the rear too
> Superstar rim tape included
> Weight 425g (super light)

Click here for spokes and spoke length calculations

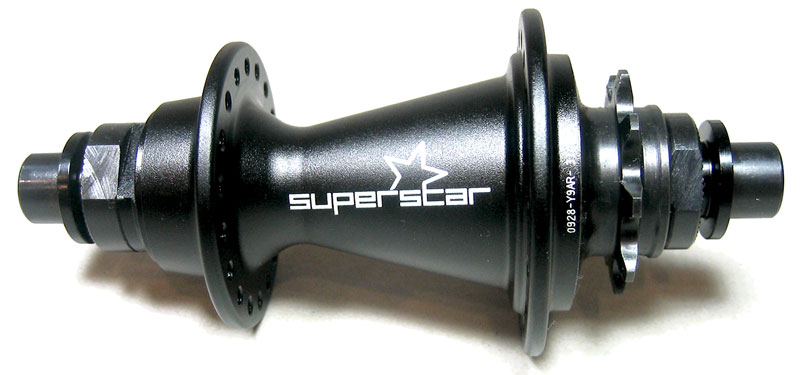

Overdrive rear hub // Black / Grey / Red

> 6061 T6 alloy, bi-conic design
> Q-Lite (Q-Lai) 6 pawl driver system
> 7075 alloy cones and washers
> 3/8" / 24tpi flush bolts included
> Heat treated female axle, works with pegs

> 36 hole
> RHD 8t or 9t driver
> Weight 420g

Click here for spokes and spoke length calculations

Overdrive front hub // Black / Dark Green / Grey / Red

> 6061 T6 alloy, bi-conic design with die-cut star logo
> 7075 alloy cones and washers
> 3/8" / 24tpi flush bolts included
> Heat treated female axle, works with pegs

> 36 hole
> Weight 245g

Click here for spokes and spoke length calculations

St Martin Hollohub front hub // Black

Made by StMartin for flatland but can also be used for street or park

> 6061 T6 alloy shell
> 7075-T6 alloy female axle
> 7075 alloy cones and washers
> 3/8" / 24tpi flush bolts included
> 36 hole
> Weight
190
g

Click here for spokes and spoke length calculations

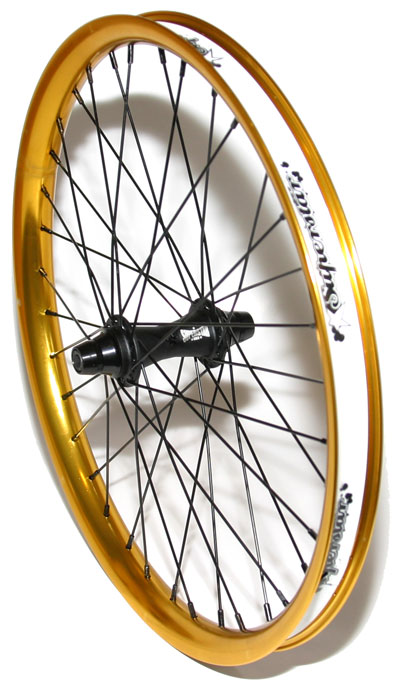

Light front wheel // Black hub and spokes with Black, Dark Gold or Brown rim

> Lightweight brakeless front 36 hole wheel
> Overdrive hub
> Light Duty rim
> Black stainless spokes, 3 cross
> Weight 920g

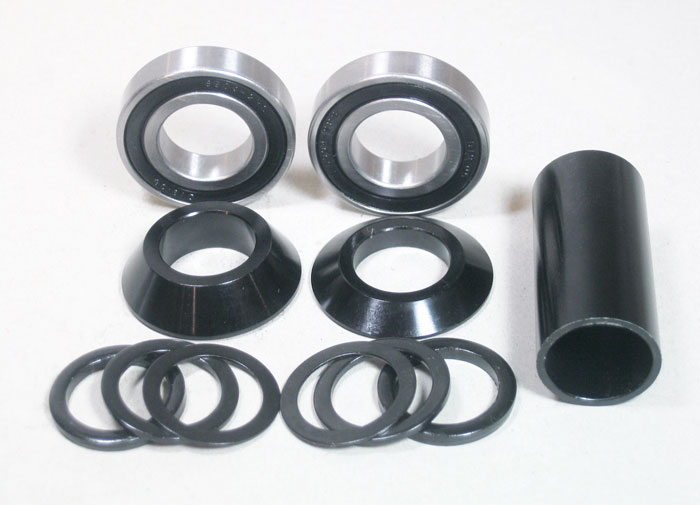

Spanish BB // Black

> 19mm or 22mm
> Supplied with spacers and washers
> Weight 19mm 138g, 22mm 119g

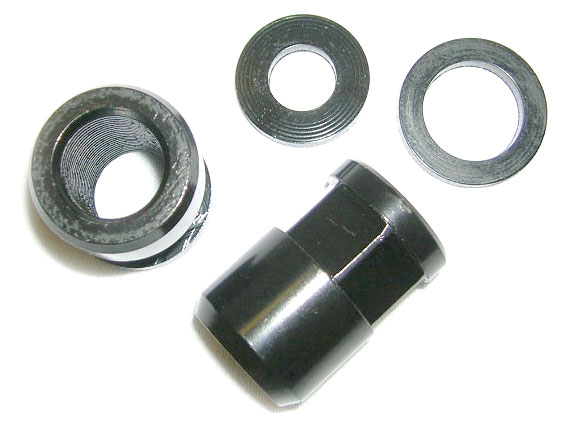

Micro peg // Black

> Protects your axle if you don't run pegs
>
Available in 3/8 or 14mm
> Heat treated crmo
> Weight 36g for the 14mm, 52g for 3/8

Female bolts // Black

> Replacement bolts for 3 piece axle hubs like the simple eject front hub
>
Available in 3/8 only
> Package contains 2 bolts and 2 washers

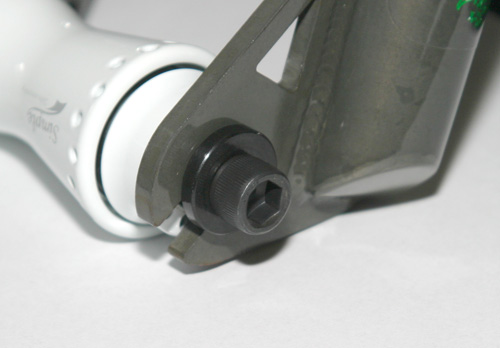

Female flush bolts // Black

> Flush bolts for 3 piece axle hubs like the simple eject front hub
>
Available in 3/8 only
> Package contains 2 bolts and 2 flush washers

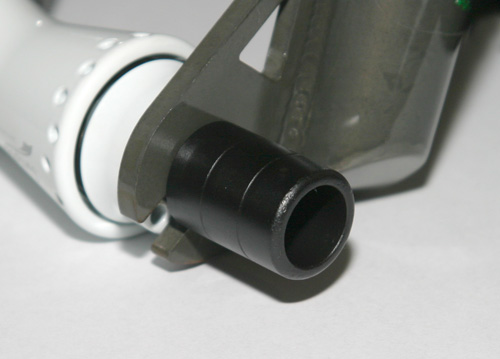

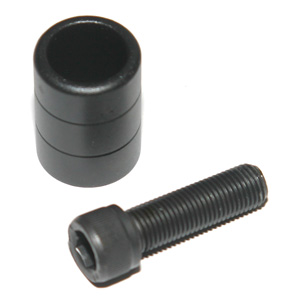

Female micro peg 3/8 // Black

> Micropeg for 3 piece axle hubs like the simple eject front hub
> Package contains 1 micro peg and 1bolt

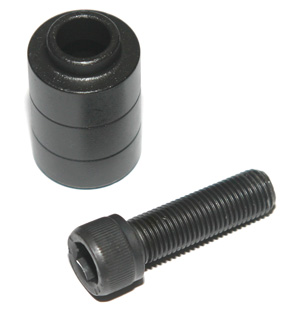

Female micro peg 14mm // Black

> Micropeg for 3 piece axle hubs like the simple eject front hub
> Package contains 1 micro peg and 1bolt



Hub guard // Grey / Gold

> Protects your hub from rails, coping etc
>
Works with all 3/8 axle hubs
> 52mm diameter for small flange hubs like Proper Maglite, Odyssey Vandero ect
> 62mm diameter for mid flange hubs like fly, proper magnatitanium etc
> 7075-T6 Aluminium
> Weight 32g

Superstar stickers

> 20 assorted stickers
